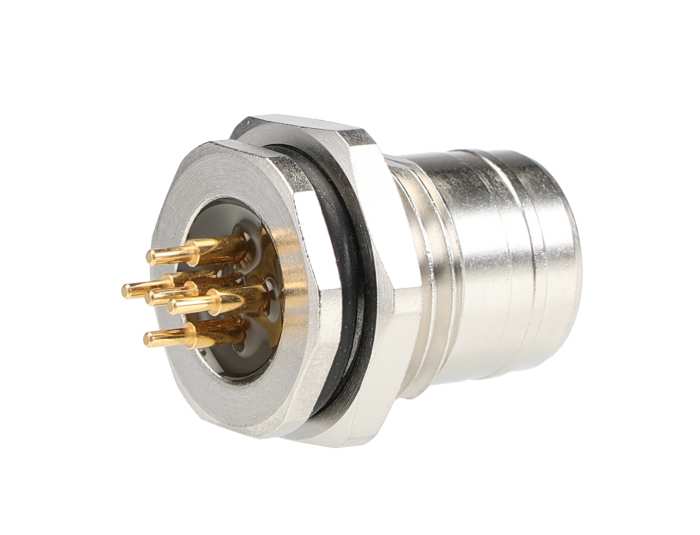

Brad from Molex Circular Connector, 5 Contacts, PCB, M12 Connector, Socket, Female, IP69K, Ultra-Lock Series

Molex Ultra-Lock Series Circular Connector, 5 Contacts, M12 Connector size - 1200840030

This circular connector is designed for PCB mount applications. Featuring a 5-pin configuration, it is engineered to cater to complex electrical requirements while offering high durability and reliability in various environments. With an IP69K rating, this connector is resistant to dust and water ingress, making it ideal for demanding conditions.

Features & Benefits

• IP69K rating ensures reliable operation in harsh environments
• Operating temperature range of -25°C to +90°C
• Threaded mating type supports secure connections
• Female socket design facilitates easy integration into systems

Applications

• Used for automation systems requiring high durability
• Suitable for electrical equipment in outdoor settings
• Ideal for mechanical subject to environmental stress
• Effective in automotive involving complex wiring
• Effective in industrial machinery with critical component connections

What makes the IP69K rating beneficial for this connector?

The IP69K rating provides protection against high-pressure and high-temperature water jets, ensuring that the connector remains functional even in severe operational environments, making it suitable for outdoor or industrial applications.

How does the threaded mating type enhance usability?

The threaded mating type offers a secure and stable connection, reducing the risk of accidental disconnection. This feature is particularly advantageous in environments where vibration or movement may occur.

Can this connector handle varying electrical loads?

With a current rating of 4A and a voltage rating of 250V AC/DC, it is capable of handling a range of electrical loads, making it versatile for many applications across different industries.

Is the contact material suitable for long-term use?

Yes, the nickel-plated brass contact material is designed for long-term use, providing excellent resistance to corrosion and ensuring reliable electrical conductivity throughout its lifespan.
