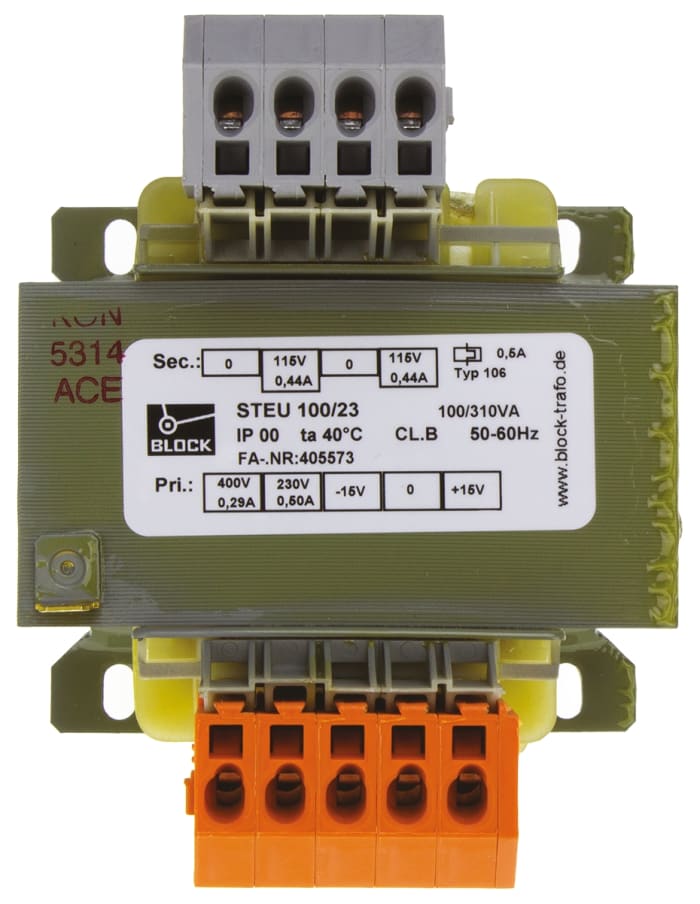

Block 2 Output 100 VA Chassis Mount Transformer, 2 x 115 V ac, DIN EN 61558-2-2, IEC 61558-2-2, CSA 22.2 No.66, EN

Name: Block 2 Output 100 VA Chassis Mount Transformer, 2 x 115 V ac, DIN EN 61558-2-2, IEC 61558-2-2, CSA 22.2 No.66, EN
Brand: Block
SKU: 3618070
Availability: LimitedAvailability

RS Stock No.: 361-8070Brand: BlockManufacturers Part No.: STEU100/23Distrelec Article No.: 156-01-002

View all in Chassis Mounting Transformers

Technical Documents

Specifications

Brand

Block

Primary Voltage

230 V, 400 V ac

Product Type

Chassis Mount Transformer

Secondary Voltage

2 x 115 V ac

Number of Outputs

Power

100VA

Maximum Operating Temperature

40°C

Length

84mm

Depth

85mm

Weight

1.3kg

Width

84mm

Series

STEU 100/23

Minimum Operating Frequency

50Hz

Maximum Operating Frequency

60Hz

Standards/Approvals

DIN EN 61558-2-2, IEC 61558-2-2, CSA 22.2 No.66, EN 61558-2-2, VDE 0570 Teil 2-2, UL 5085-1/-2

Country of Origin

Germany

Product Details

Safety Isolating Transformer

Safety isolating and isolating control transformers
Twin secondary winding for series or parallel connection
63,100,160 and 250VA transformers can be mounted on standard 35mm DIN rail
All units have 4 hole panel mount fixings
Easy installation 4mm² cage clamp terminals
Insulation catagory Class B

Primary connections 0V, -15V, +15V, 230V, 400V. The + 15 and -15V allows you to offset the primary Voltage by 15V
Low inrush current
High efficiency, low regulation

Standards

EN 61558, VDE0570

Approvals

UL Recognised Component for Canada & US
