Block 400 VA Chassis Mount Transformer, 2 x 24 V ac, EAC, cURus

Name: Block 400 VA Chassis Mount Transformer, 2 x 24 V ac, EAC, cURus
Brand: Block
SKU: 1237391
Availability: LimitedAvailability

RS Stock No.: 123-7391Brand: BlockManufacturers Part No.: STEU 400/48

View all in Chassis Mounting Transformers

Technical Documents

Specifications

Brand

Block

Product Type

Chassis Mount Transformer

Primary Voltage

400 V ac, 230 V

Secondary Voltage

2 x 24 V ac

Power

400VA

Minimum Operating Temperature

40°C

Maximum Operating Temperature

40°C

Minimum Operating Frequency

50Hz

Length

104mm

Depth

104mm

Width

120mm

Series

STEU

Maximum Operating Frequency

60Hz

Standards/Approvals

EAC, cURus

Country of Origin

Germany

Product Details

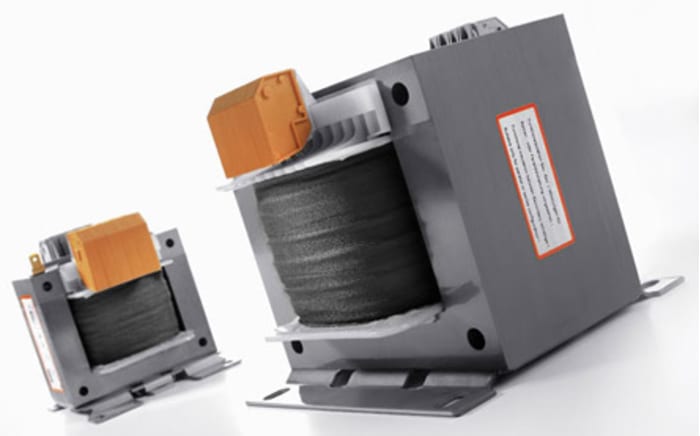

Block STEU Series Isolating Transformers

BLOCK STEU series isolating transformers with a dual input of 230 and 400 Vac, These safety transformers have a high performance for the volume due to their compact design. The transformers are quick to cable up due to the use of spring clamp terminals, they are also simple to mount with their robust metal footplate with oval slots.

Features

Dual input Voltage
Good switch on behaviour due to reduced starting currents
Excellent corrosion protection
Low Noise
Contact protected screw connection terminals complying with UVV BGV A3

Applications

An isolating transformer for safe electrical isolation of the input and out put sides. The Transformer is suitable for creating SELV and PELV because of the limit on the output voltage. The construction of the transformer can supply control systems according to VDE0113.

Block STEU Series Isolating Transformers

Features

Dual input Voltage
Good switch on behaviour due to reduced starting currents
Excellent corrosion protection
Low Noise
Contact protected screw connection terminals complying with UVV BGV A3

Applications

An isolating transformer for safe electrical isolation of the input and out put sides. The Transformer is suitable for creating SELV and PELV because of the limit on the output voltage. The construction of the transformer can supply control systems according to VDE0113.
