Technical Documents
Specifications
Brand
BinderProduct Type
Circular Connector
Number of Contacts
4
Mount Type
Cable
Current
16A
Connector Size
RD24
Plug/Socket
Plug
Contact Gender
Male
IP Rating
IP65, IP67
Series
693
Orientation
Straight
Voltage
400V
Termination Type
Screw Clamp
Minimum Operating Temperature
-40°C
Shell Size
29 mm
Mating Type
Screw
Maximum Operating Temperature
100°C
Housing Material
PBT
Standards/Approvals
UL
Pole Format
3+PE
Contact Plating
Silver
Contact Material
Brass
Country of Origin
Germany
Product Details

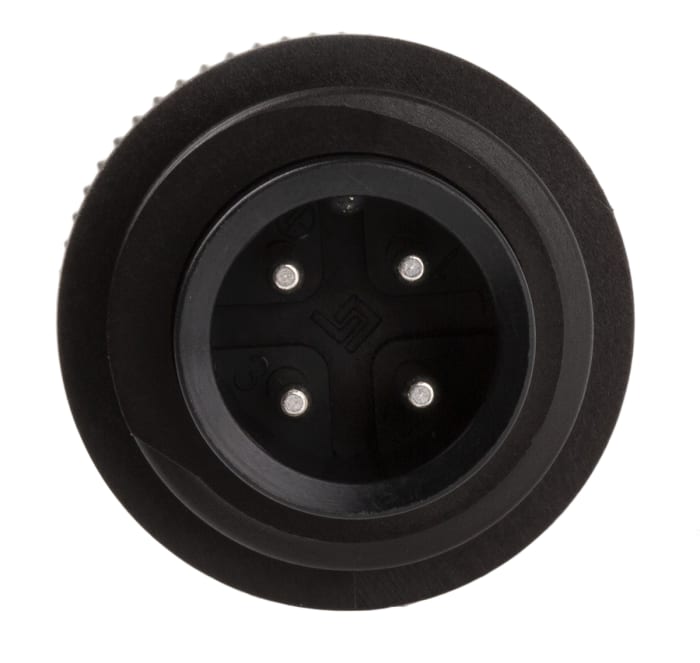

This circular connector provides a robust means of linking power and signal lines in industrial environments. Designed as a straight plug for cable mounting, it accommodates four contacts in a 3+PE arrangement and is intended for screw-style mating and termination. The connector combines a thermoplastic housing with metal contacts to deliver dependable connections where moisture resistance and elevated temperature performance are required.
It operates across a wide span from -40 °C up to a maximum of 100 °C, accommodating cold storage to heated enclosures.
The contact arrangement is three live conductors Plus a protective-earth contact integrated within the four-contact format for earthing continuity.
It is designed for cable-mounted installations, with a straight-geometry plug suited to inline cable runs.
Contacts are brass with a silver-plated layer, combining base-metal strength with a low-resistance, corrosion-resistant surface finish.
The connector meets UL approval criteria relevant to its electrical and constructional attributes.
