binder Circular Connector, 5 Contacts, Cable, M9 Connector, Plug, Male, IP67, 712 Series

Binder 712 Series Circular Connector, 5Pole Contact Count, 3A Current - 99-0413-00-05

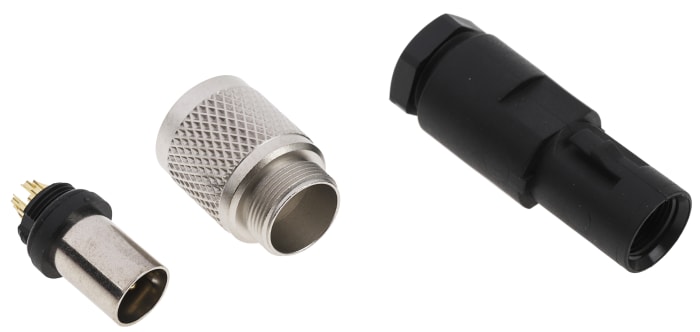

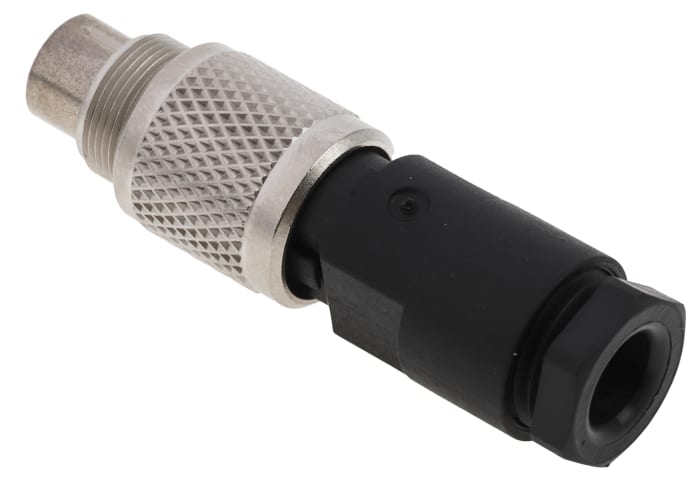

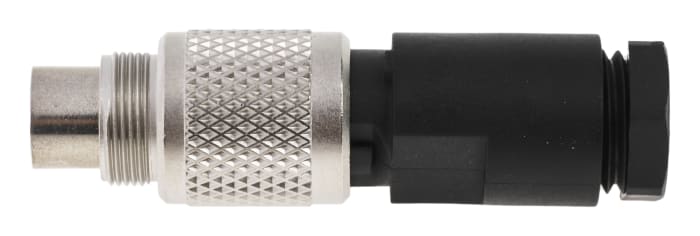

This circular connector is a 5-contact, straight cable plug designed for secure electrical connections in industrial environments. It serves as a male M9 Interface that joins cable assemblies to equipment where a screw mating mechanism and Compact form factor are required. The connector provides insulated housing protection suitable for applications exposed to moisture and particulates while maintaining low-voltage signal and power delivery.

Features and Benefits:

• Five gold-plated brass contacts provide robust conductivity and corrosion resistance
  Solder termination ensures stable, low-resistance cable joints
  Rated for 125V and 3A to support small power and signal circuits
  IP67 ingress protection for operation in wet or dusty conditions
  Operates between -40°C and 85°C for varied thermal environments

Applications

• Suitable for automation sensor and actuator cabling in factory systems
  Ideal for industrial control panels requiring Compact power connectors
  Used with machinery where waterproof cable feeds are necessary
  Can be used for field instrumentation subject to temperature extremes

How is the connector secured to its counterpart during installation?

It uses a screw mating arrangement that threads the plug to the mating socket, ensuring a mechanically stable electrical interface.

What materials contribute to electrical contact performance?

Contact pins are brass with a gold plating to maintain low contact resistance and resist surface oxidation over time.

Which environmental stresses can it withstand while maintaining connectivity?

The design meets IP67 standards, allowing temporary immersion and protection from dust ingress under normal deployment.

How does the housing material affect durability and isolation?

The polyamide body offers mechanical resilience and electrical insulation suited to industrial cable assemblies.
