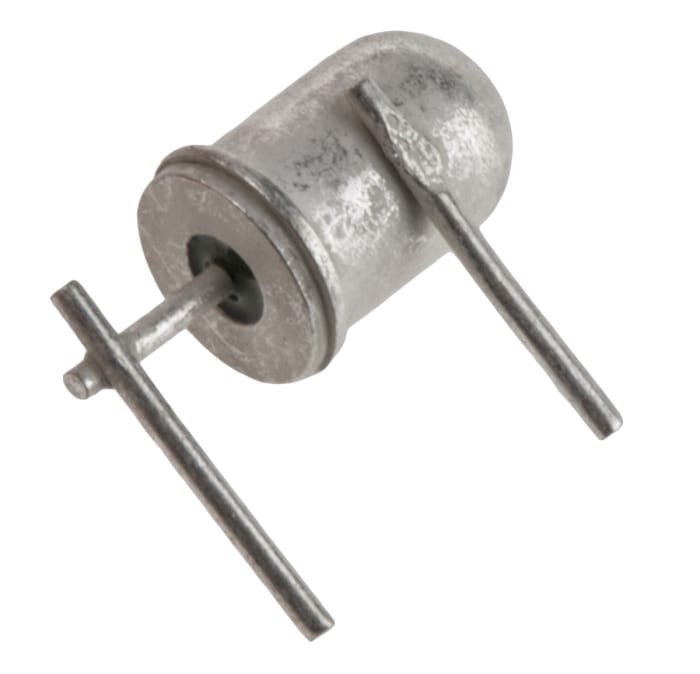

Assemtech 10 ° Horizontal Tilt Switch 100 mA 60 V ac

Name: Assemtech 10 ° Horizontal Tilt Switch 100 mA 60 V ac
Brand: Assemtech
SKU: 2357639
Availability: LimitedAvailability

RS Stock No.: 235-7639Brand: AssemtechManufacturers Part No.: CW1600-3

View all in Tilt Switches

Technical Documents

Specifications

Brand

Assemtech

Product Type

Tilt Switch

Differential Angle

10 °

Mounting Orientation

Horizontal

Maximum Current

100mA

Maximum AC Voltage

60V ac

Maximum DC Voltage

60V dc

Contact Resistance

100Ω

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

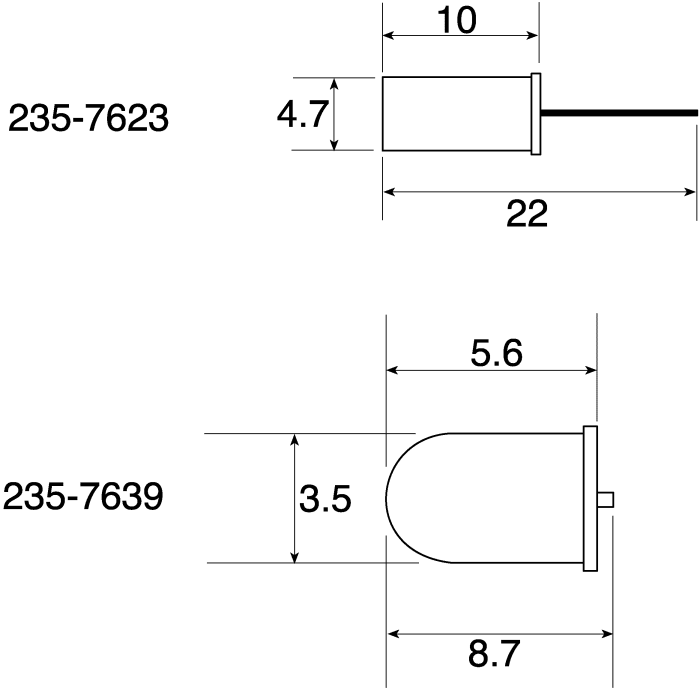

Length

8.71mm

Standards/Approvals

ISO 9001

Series

CW1

Country of Origin

United States

Product Details

Standard & Miniature Tilt 2 Pin

Gas filled, hermetically sealed in miniature metal housings for use in ON/OFF control applications
±7.5° from the horizontal angle
The switch movement required to cause contact change (E.g. on/off) is called the differential angle

Notes

When in the horizontal position the switch contact may be open or closed.
