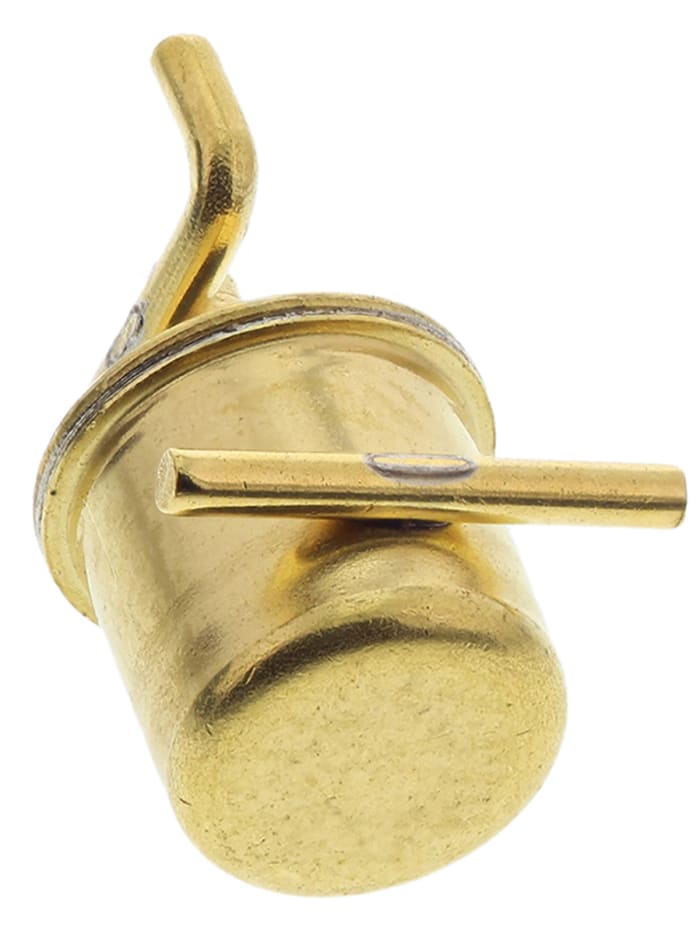

Assemtech Vibration Sensor, 200 mA Max, -37 °C → 100 °C

Name: Assemtech Vibration Sensor, 200 mA Max, -37 °C → 100 °C
Brand: Assemtech
SKU: 6187541
Availability: LimitedAvailability

RS Stock No.: 618-7541Brand: AssemtechManufacturers Part No.: AU2402-6

Technical Documents

Specifications

Brand

Product Type

Vibration Sensor

Maximum Current

200mA

Maximum AC Voltage

24V ac

Contact Resistance

100Ω

Length

8.99mm

Minimum Operating Temperature

-37°C

Maximum Operating Temperature

100°C

Standards/Approvals

ISO 9001

Hazardous Area Certification

Country of Origin

United States

Product Details

Using 2 ball actuators, these switches have the advantage of remaining closed at rest while remaining completely non-position sensitive.

2 ball actuator design
Less sensitive than the MS24 range (e.g. stock no. 618-7513)
Gold plated

Using 2 ball actuators, these switches have the advantage of remaining closed at rest while remaining completely non-position sensitive.

2 ball actuator design
Less sensitive than the MS24 range (e.g. stock no. 618-7513)
Gold plated
