Technical Documents
Specifications
Product Type
Toggle Switch
Contact Configuration
SPDT
Switch Operation
On-On
Switch Contact Current
20A
Mount Type
Panel
Terminal Type
Tab
IP Rating
IP40
Illuminated
No
Panel Cutout Size
12.7 mm
Actuator Length
16.4mm
Contact AC Voltage
250V ac
Actuator Material
Nylon
Maximum Operating Temperature
85°C
Switch Configuration
2P
Length
25.5mm
Standards/Approvals
UL, RoHS, CSA, BEAB, EN
Width
13.7mm
Series
1700 & 1750
Country of Origin
Tunisia
Product Details

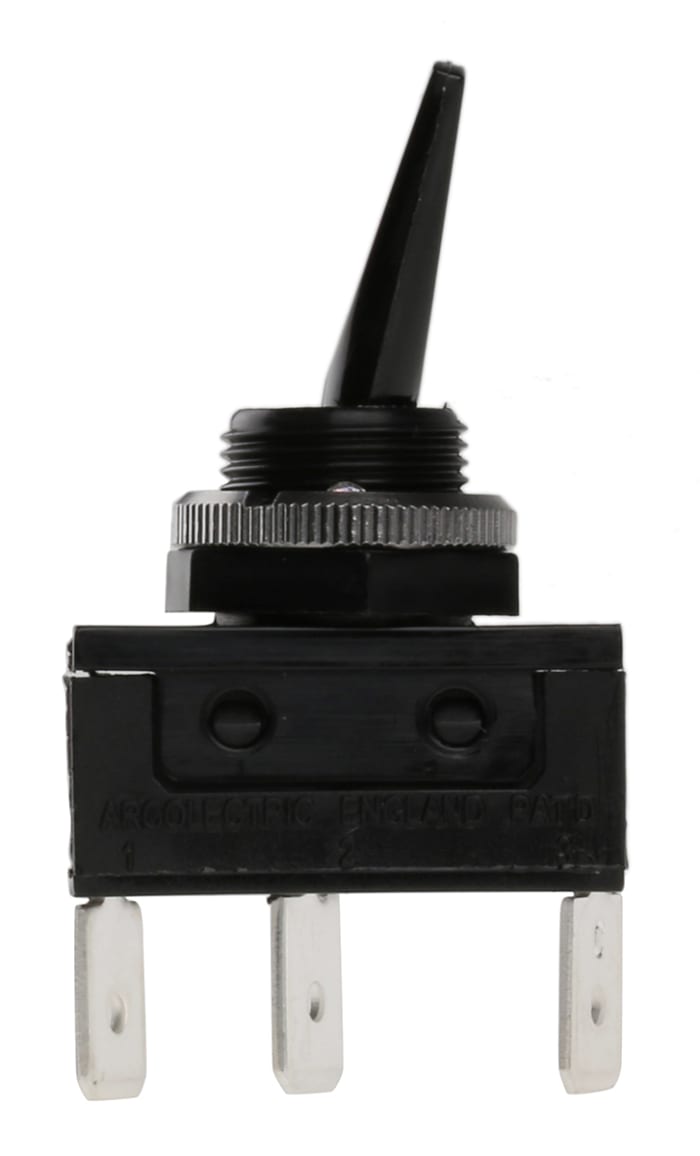

This toggle switch is an SPDT (Single Pole, Double Throw) switch designed for panel mounting applications. It accommodates a contact current rating of 20A at 250V AC and features a durable nylon actuator measuring 16.4mm in length. This switch is rated to IP40, making it suitable for use in environments where dust exposure is a concern.
The SPDT configuration allows for versatile circuit connections, enabling the control of multiple circuits from a single switch position, which is essential in applications requiring varied operational functions.
An IP40 rating ensures protection against solid objects larger than 1mm, making the switch suitable for use in controlled environments where dust ingress could affect performance.
The nylon actuator provides excellent resistance to wear and environmental damage while ensuring a firm grip, which is crucial for reliable toggling in industrial applications.
While it is rated for non-inductive loads up to 20A, it can also manage certain inductive loads; however, it is advised to consult load specifications to ensure compatibility.
For biased switches '(on)' refers to momentary 'on' position
ENEC, UL recognised component, CSA certified
