Technical Document
Specifications
Brand

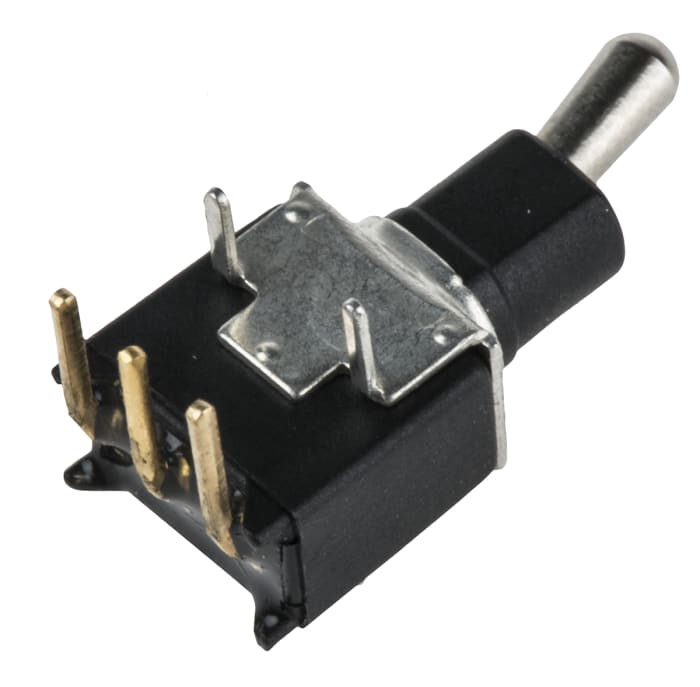

ApemProduct Type
Toggle Switch
Contact Configuration
SPDT
Switch Operation
On-On
Switch Contact Current
400mA
Mount Type
PCB
Terminal Type
Through Hole
Illuminated
No
Minimum Operating Temperature
-30°C
Contact DC Voltage
20V dc
Contact AC Voltage
20V ac
Actuator Length
5.3mm
Actuator Material
Brass
Maximum Operating Temperature
85°C
Switch Configuration
On-On
Height
19.58mm
Length
9.6mm
Standards/Approvals
RoHS
Width
8.1mm
Series
TL
Country of Origin
France
Product details
Vertical and two types of right angle terminations available
Suitable for low level switching applications
Totally sealed, suitable for immersion cleaning
Wave solderable, will withstand 260°C for 5 seconds
Gold plated brass terminals
Brass actuator and PBT case
Minimum load current: 10mA at 50mV - 10μA at 5Vdc
Number of operations: 60000 (2 pos), 30000 (3 pos)
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
€ 7.91
€ 7.91 Each (Exc. VAT)
1
€ 7.91
€ 7.91 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 24 | € 7.91 |
| 25 - 49 | € 6.48 |
| 50 - 99 | € 5.93 |
| 100 - 249 | € 5.55 |
| 250+ | € 5.07 |
