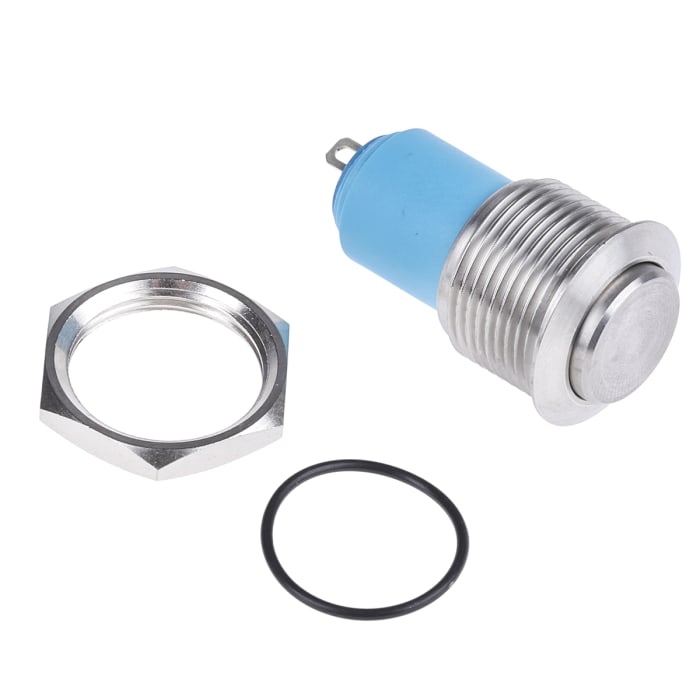

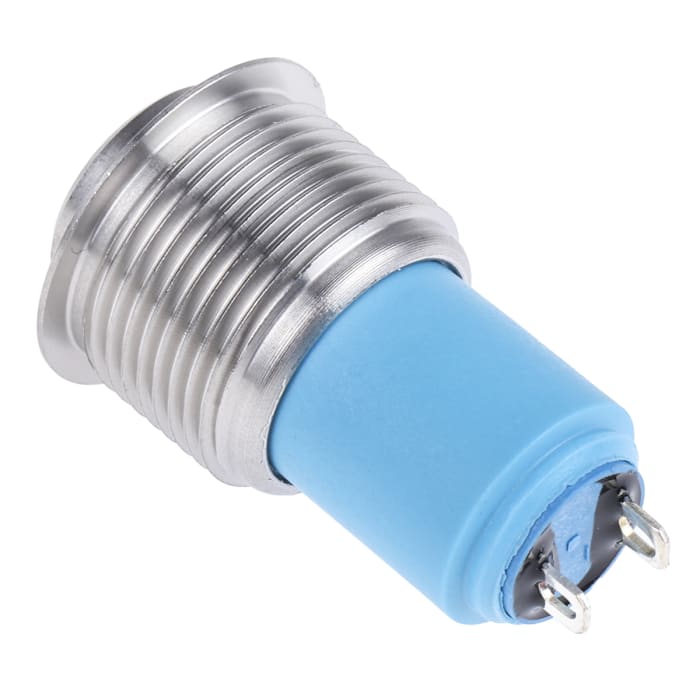

APEM AV Series Push Button Switch, Latching, 19.2 mm Cutout, SPST, IP65, 24 V dc

Name: APEM AV Series Push Button Switch, Latching, 19.2 mm Cutout, SPST, IP65, 24 V dc
Brand: APEM
SKU: 0225583
Availability: LimitedAvailability

RS Stock No.: 225-583Brand: APEMManufacturers Part No.: AV0611A240KDistrelec Article No.: 30399195

View all in Push Button Switches

Technical Documents

Specifications

Brand

Apem

Actuator Colour

Silver

Switch Operation

Latching

Product Type

Push Button Switch

Illuminated

Panel Cutout Size

19.2 mm

Series

Contact Configuration

SPST

Terminal Type

Solder

IP Rating

IP65

Actuator Style

Round

Contact DC Voltage

24V dc

Minimum Operating Temperature

-30°C

Maximum Operating Temperature

70°C

Standards/Approvals

RoHS

Switch Contact Current

Country of Origin

France

Product Details

AV Series Anti-vandal push-button switches

From Apem, this AV series anti-vandal switch is robust and durable, boasting crush-proof impact resistance and an anti-jamming construction. With gold-plated silver contacts and a choice of stainless steel or nickel plated brass bushing, this AV series anti-vandal switch also features a high degree protection and a long mechanical life.

Features and Benefits:

• Electrical life of 40,000 cycles
• Mechanical life of 200,000 cycles
• Flat 16mm actuator
• ON/OFF electrical function
• Contact status display signal

Available in this Range:

• Stock No: 225-583 is a push-button switch with a stainless steel bushing and actuator.
• Stock No: 498-0837 is a push-button switch with a nickel plated brass bushing and actuator.

AV Series Anti-vandal push-button switches

Features and Benefits:

• Electrical life of 40,000 cycles
• Mechanical life of 200,000 cycles
• Flat 16mm actuator
• ON/OFF electrical function
• Contact status display signal

Available in this Range:

• Stock No: 225-583 is a push-button switch with a stainless steel bushing and actuator.
• Stock No: 498-0837 is a push-button switch with a nickel plated brass bushing and actuator.

Quantity	Unit price
1 - 9	€ 40.81
10 - 49	€ 36.72
50 - 99	€ 30.62
100 - 249	€ 28.56
250+	€ 26.13

Quantity	Unit price
1 - 9	€ 40.81
10 - 49	€ 36.72
50 - 99	€ 30.62
100 - 249	€ 28.56
250+	€ 26.13
