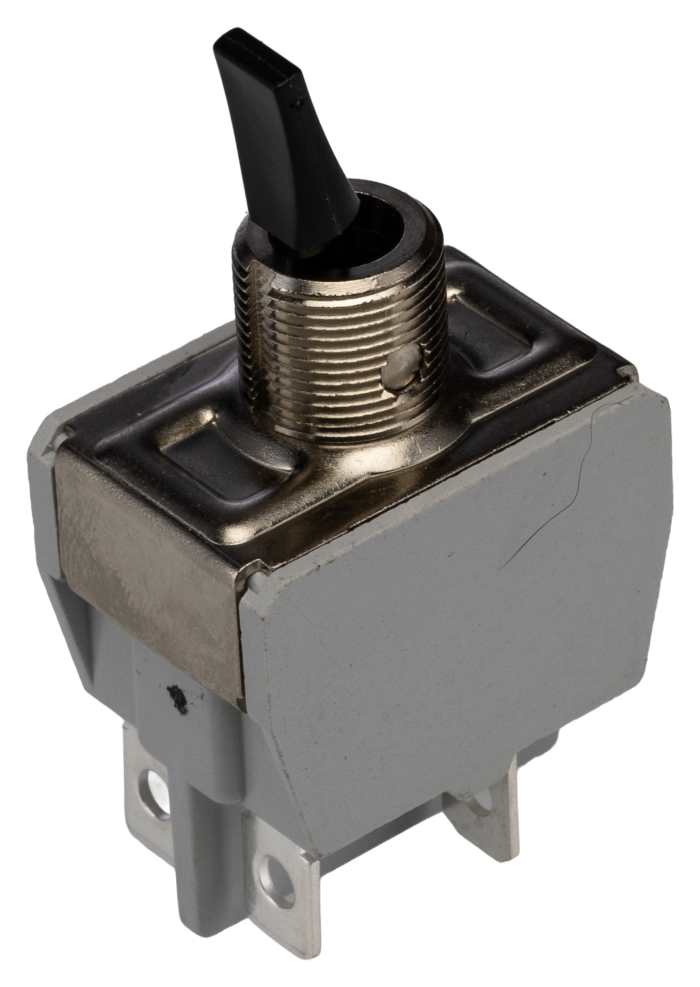

APEM Toggle Switch, Panel Mount, On-Off, 2RT, Tab Terminal, 24 V dc, 250 V ac
Technical Document
Specifications
Brand
ApemProduct Type
Toggle Switch
Contact Configuration
2RT
Switch Operation
On-Off
Switch Contact Current
10A
Mount Type
Panel
Terminal Type
Tab
Illuminated
No
Panel Cutout Size
12.5 mm
Actuator Length
13.5mm
Minimum Operating Temperature
-20°C
Contact DC Voltage
24V dc
Contact AC Voltage
250V ac
Actuator Material
Polyamide
Maximum Operating Temperature
55°C
Switch Configuration
On-Off
Height
57.5mm
Length
29.7mm
Standards/Approvals
UL, CSA, EN, NF, RoHS, VDE
Width
21.5mm
Series
600NH
Country of Origin
France
Product details
Toggle Switches, Std, 15A Flat Insulated Lever
Single and double pole switches with a choice of flat insulated or traditional metal levers.
12mm mounting bush
250 ( 1/4 in.) terminals
Brass actuator and Melamine/Polyester case
Silver/Nickel Alloy contacts
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 11.72
€ 11.72 Each (Exc. VAT)
1
€ 11.72
€ 11.72 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 24 | € 11.72 |
| 25 - 49 | € 9.61 |
| 50 - 99 | € 8.79 |
| 100 - 249 | € 8.21 |
| 250+ | € 7.50 |
