Technical Documents
Specifications
Brand
ApemSeries
3000
Number of Axes
2
Product Type
Contactless Joystick
Switch Technology
Hall Effect
IP Rating
IP65
Handle Type
Conical
Switch Contact Current
40mA
Joystick Travel
50 °
Terminal Type
Through Hole
Contact DC Voltage
5V dc
Mechanical Life
5000000Cycles
Standards/Approvals
No
Maximum Operating Temperature
70°C
Minimum Operating Temperature
-25°C
Country of Origin
United Kingdom
Product Details

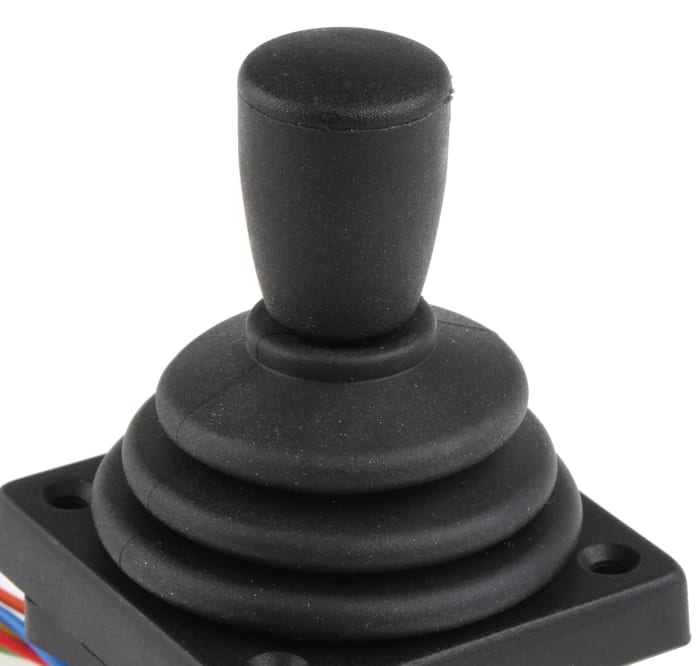

The APEM 2 way contactless joystick switch has an operating life of 5000000 cycles and contact electrical current rating of 40mA and voltage rating of 5VDC. It is the latest generation in high precision contactless joysticks. It is available in a 2-axes format, which covers X and Y and each provides one proportional output. Long trouble-free life is assured with the latest Hall effect technology, providing a range of analogue signals or custom PWM output options. This joystick is designed for performance, strength and robustness. The unit is fitted with a conical handle giving precise and reliable control. A square limiter has been fitted giving the full movement of the stick. This unit comes fitted with a 7-way connector.
Stock information temporarily unavailable.
$ 220.81
$ 220.81 Each (Exc. VAT)
1
$ 220.81
$ 220.81 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | $ 220.81 |
| 5 - 9 | $ 203.14 |
| 10 - 24 | $ 198.71 |
| 25 - 49 | $ 181.08 |
| 50+ | $ 165.61 |
