Technical Documents
Specifications
Brand
ams OSRAMProduct Type
Hall Effect Sensor
Sensor Type
Position Sensor
Number of Axis
1
Technology
Spinning Current Hall Technology
Mount Type
Surface
Magnetic Type
Bipolar
Interface Type
SSI, PWM
Minimum Frequency Response
10Hz
Minimum Supply Voltage
3.3V
Package Type
SSOP
Maximum Supply Voltage
5V
Minimum Operating Temperature
-40°C
Pin Count
16
Maximum Operating Temperature
125°C
Height
5.3mm
Length
6.2mm
Standards/Approvals
AEC-Q100
Width
5.3mm
Series
AS5040
Supply Current
21mA
Automotive Standard
AEC-Q100 Grade 1
Response Time
50ms
Country of Origin
Austria
Product Details

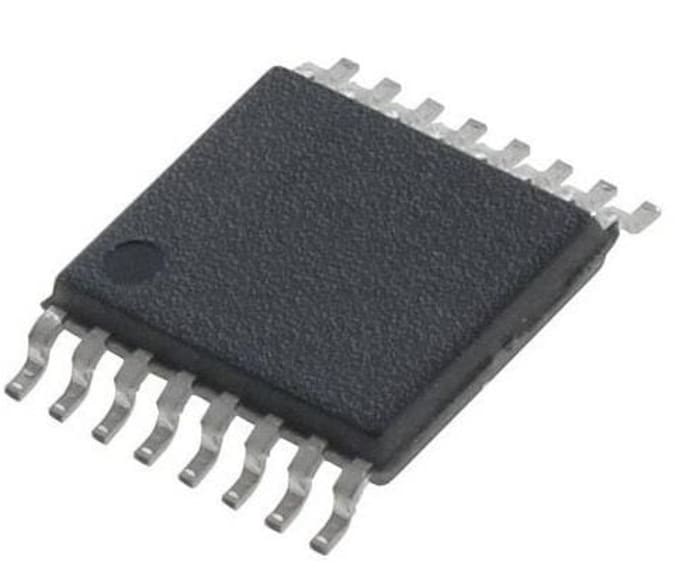

The AMS AS5040-ASST is a contactless magnetic rotary encoder for accurate angular measurement over a full turn of 360°. It is a system-on-chip, combining integrated Hall elements, analog front end and digital signal processing in a single device.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
€ 11.01
€ 11.01 Each (Exc. VAT)
Standard
1
€ 11.01
€ 11.01 Each (Exc. VAT)
