Amphenol Communications Solutions Right Angle, Cable Female- 1 Port Type USB Type A IP67 USB Connector USB 3.0
Technical Document
Specifications
Product Type
USB Connector
USB Type
USB Type A
Mount Type
Cable
USB Specification
USB 3.0
Current
1.5A
Connector Gender
Female
Orientation
Right Angle
IP Rating
IP67
Number of Ports
1
Voltage
100 V
Minimum Operating Temperature
-40°C
Termination Type
Solder
Maximum Operating Temperature
85°C
Contact Material
Phosphor Bronze
Standards/Approvals
No
Hazardous Area Certification
No
Series
LUSB
Country of Origin
China
Product details

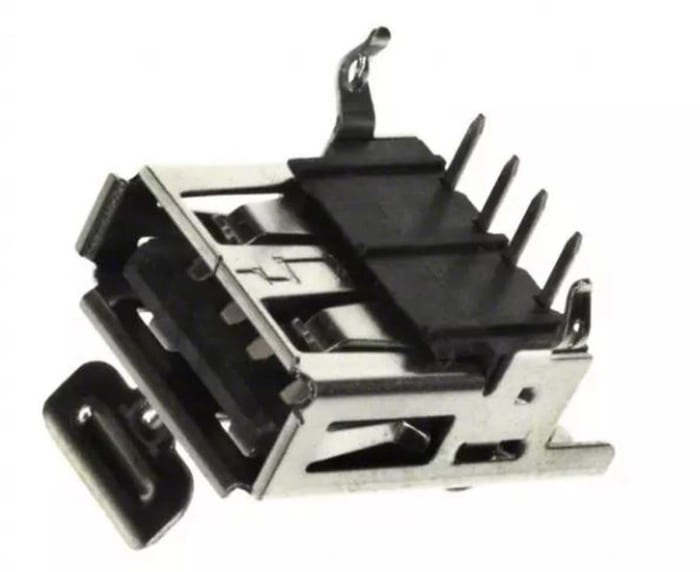

USB Connector LUSB Series with Positive Locking
Amphenol USB connector LUSB Series, Series A type USB with a unique connector latching mechanism that has been developed to address unintentional interruption of data transmission. This USB connector features a latch which must be intentionally raised in order to remove the connector, resistant to accidental pulling. Suitable for military, industrial and automotive connector applicatons.
Current Rating 1.5 Amps
Dielectric withstanding voltage 500Vac
Operating temperature range -40°C → +85°C
Meets military shock and vibration levels
Stainless steel locking tab
Contact plating gold over nickel
UL94V-0 Black Housing
Amphenol USB & RJ45 Connectors, Harsh Environment
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 3.23
€ 3.23 Each (Exc. VAT)
1
€ 3.23
€ 3.23 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 24 | € 3.23 |
| 25 - 74 | € 2.89 |
| 75 - 199 | € 2.72 |
| 200 - 399 | € 2.62 |
| 400+ | € 2.47 |
