Alpha Wire Polyvinyl Chloride Black Cable Sleeve, 30m Length 3.58 mm Cable Diameter, FIT Wire Management Series

Name: Alpha Wire Polyvinyl Chloride Black Cable Sleeve, 30m Length 3.58 mm Cable Diameter, FIT Wire Management Series
Brand: Alpha Wire
SKU: 1119622
Availability: LimitedAvailability

RS Stock No.: 111-9622Brand: Alpha WireManufacturers Part No.: P1058 BK005

View all in Cable Sleeves

Technical Documents

Specifications

Brand

Alpha Wire

Product Type

Cable Sleeve

Colour

Black

Material

Polyvinyl Chloride

Sleeve Length

30m

Minimum Cable Diameter

3.28mm

Maximum Cable Diameter

3.58mm

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

105°C

Standards/Approvals

Dielectric Strength

34.3kV/mm

Wall Thickness

0.51mm

Series

FIT Wire Management

Product Details

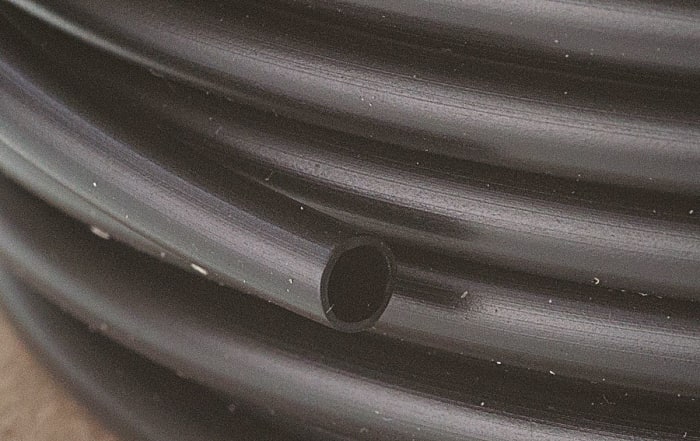

Protective PVC Cable Sleeving

The Alpha Wire multi-purpose protective PVC cable sleeves are moulded from extruded plastic that results in a highly flexible and insulated cable sleeve with excellent mechanical, thermal and electrical properties. The protective tubing remains functional through a large temperature range of -20°C to 105°C and offers high resistance to abrasion, oil and chemicals.

Features and Benefits
• Protective PVC cable sleeves that offers resistance to high heat, oil, abrasion and mould
• Hard-wearing, flexible wire protection
• Can be used in many general applications
• Non-corrosive
