Specifications
Brand
Alpha WireNumber of Pairs
4
Product Type
Data Cable
Cross Sectional Area
0.14 mm²
Cable Length
50m
Jacket Colour
Grey
Outside Diameter
6.2mm
Minimum Operating Temperature
-30°C
Jacket Material
Polyvinyl Chloride
Maximum Operating Temperature
105°C
Standards/Approvals
CE, CSA Certified, UL
Number of Strands
7
Core Strands
7 x 34AWG
Size of Strands
34AWG
Fire Behaviour
Flame Retardant
Conductor Material
Tin Copper Wire
Series
Pro-Tekt
Voltage
300V
Product Details

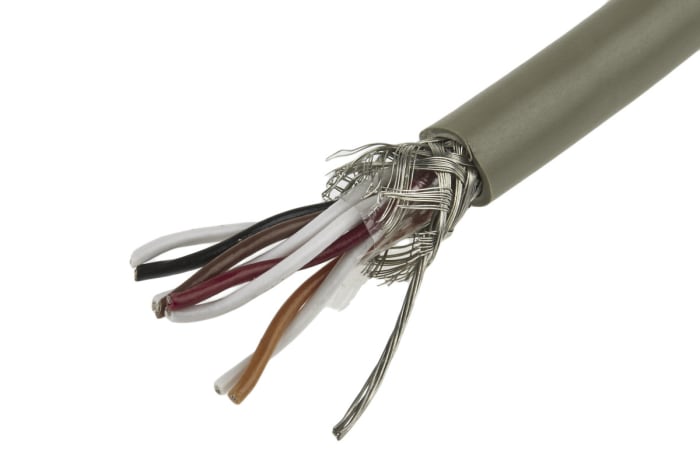

Pairs: 4, White + Black, White + Brown, White + Red, White + Orange
Nominal Diameter: 0.244 inch (6.20 mm)
Jacket Thickness: 0.032 inch (0.81 mm)
Stranding: 7/34
Insulation Thickness: 0.010 (0.25 mm)
26 AWG (0.14 mm²)
Jacket Colour: Grey
The Pro-Tekt range from Alpha Wire is a high performing flexible cable sheathed in premium grade PVC. The cable is perfectly rounded enabling it to be easily used in small spaces. This cable is available as both multiconductor and multipair.
Unshielded (unscreened) cables have the smallest overall diameter and can be used in controlled environments which require low-noise.
Foil shielded cables consist of an aluminium/polyester shield. At lower frequencies, they provide moderate electromagnetic resistance and enable the cables to be small and light.
Braided shielding consists of a tightly woven layer of tinned copper and offers great versatility. It is strong and flexible while also providing excellent mechanical strength.
Supra-Shield is a premium foil and braid shielding from Alpha Wire which combines a triple layer of aluminium and polyester foil plus a tinned copper braided shield. Supra-Shield has excellent resistance to electromagnetic interference whilst reducing low and high-frequency noise.
Minor malfunctions or cable failures can result in costly downtime. The Pro-Tekt range of high-performance cables has been specially designed for demanding applications in the european marketplace. Pro-Tekt cabling can be used in power equipment in many industries including industrial automation, medical devices, aerospace, petrochemical and commercial electronics.
The tinned copper wiring in Pro-Tekt cables can be easily connected to switches, plugs, sockets and connectors. Pro-Tekt cables can be used anywhere that might benefit from combining data, power, coaxial and AV cores into a single cable.
IEC EN 60332-1 • IEC EN 60332-2 • UL CM • UL AWM 2464 VW-1 • CSA CMG FT-4
Stock information temporarily unavailable.
€ 330.73

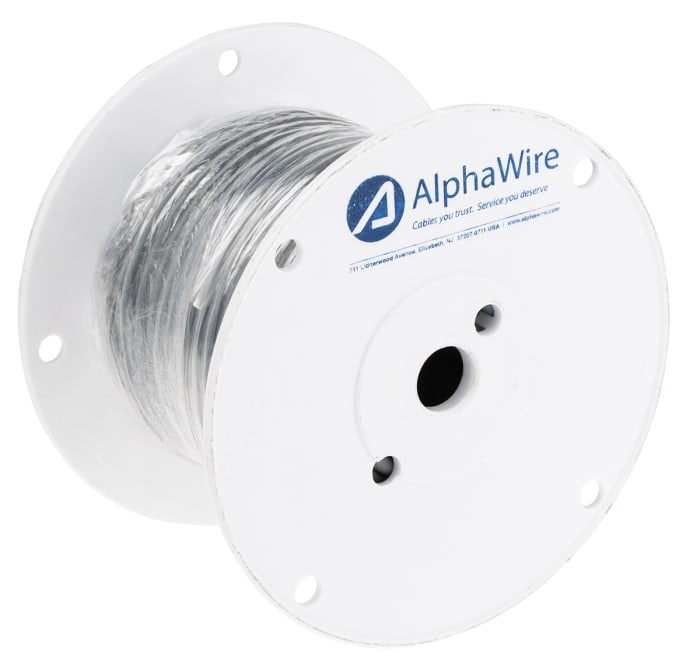

€ 330.73 1 Reel of 50 Metres (Exc. VAT)
1
€ 330.73
€ 330.73 1 Reel of 50 Metres (Exc. VAT)
Stock information temporarily unavailable.
1
