Technical Documents
Specifications
Brand
Alpha WireCross Sectional Area
3.3mm²
Product Type
Hook Up Wire
Jacket Colour
Blue
American Wire Gauge
12AWG
Core Strands
65 x 0.25mm
Cable Length
30m
Outside Diameter
2.97mm
Voltage
600V
Maximum Operating Temperature
105°C
Conductor Material
Tinned Copper
Minimum Operating Temperature
-40°C
Sub Type
EcoWire
Standards/Approvals
CE, CSA, UL
Cable Type
Hookup
Jacket Material
Modified Polyphenilether
Fire Behaviour
Flammability Test: VW-1
Series
Ecogen Ecowire
Number of Strands
65
Size of Strands
0.25mm
Product Details

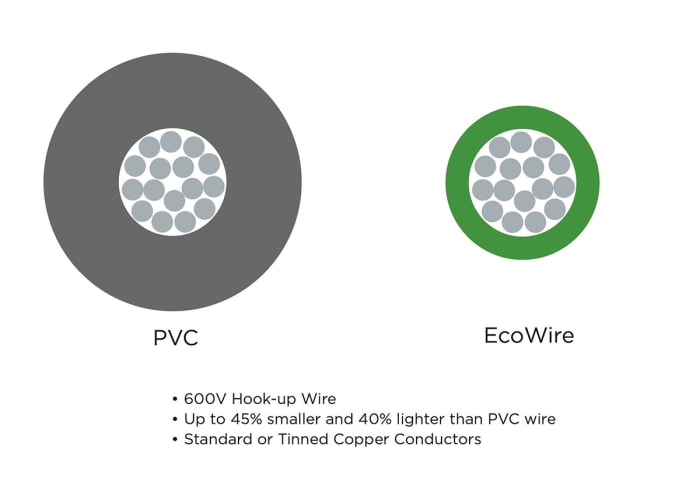

This hook up wire is designed for versatile electrical applications. Featuring a single core shape made from tinned copper, it delivers reliable performance across various environments. The insulation, made from MPPE, ensures durability and a high voltage rating of up to 600 V. With a cross-sectional area of 3.3mm² and an outer diameter of 2.97mm, this unshielded wire is available in a striking blue colour and comes in a convenient length of 30 m.
The maximum bend radius for this wire is five times the cable diameter, ensuring flexibility during installation without compromising performance.
MPPE insulation effectively protects against moisture and thermal damage, allowing this wire to maintain integrity under a wide temperature range while ensuring electrical safety.
Tinned copper is resistant to corrosion, which enhances its lifespan and reliability, making it suitable for environments exposed to moisture or oxidation.
Yes, the wire is designed to withstand both high and low-temperature extremes, making it suitable for various outdoor applications as long as it remains protected from direct exposure to harsh environmental elements.
Stock information temporarily unavailable.
€ 95.44
€ 95.44 1 Reel of 30 Metres (Exc. VAT)
1
€ 95.44
€ 95.44 1 Reel of 30 Metres (Exc. VAT)
Stock information temporarily unavailable.
1
