Alpha Wire Alpha Essentials LSZH Communication & Control Series Data Cable, 8 Pairs, 0.22 mm², 30 m, Grey Sheath Low

Name: Alpha Wire Alpha Essentials LSZH Communication & Control Series Data Cable, 8 Pairs, 0.22 mm², 30 m, Grey Sheath Low
Brand: Alpha Wire
SKU: 6733210
Availability: LimitedAvailability

RS Stock No.: 673-3210Brand: Alpha WireManufacturers Part No.: 5478L SL005

View all in Twisted Pair & Multicore Data Cable

Technical Document

Specifications

Brand

Alpha Wire

Number of Pairs

Product Type

Data Cable

Cross Sectional Area

0.22mm²

Cable Length

30m

Jacket Colour

Grey

Outside Diameter

8.1mm

Minimum Operating Temperature

-20°C

Jacket Material

Low Smoke Zero Halogen

Maximum Operating Temperature

75°C

Standards/Approvals

Core Strands

Fire Behaviour

Flame Retardant

Conductor Material

Tin Copper Wire

Series

Alpha Essentials LSZH Communication & Control

Voltage

300V

Product details

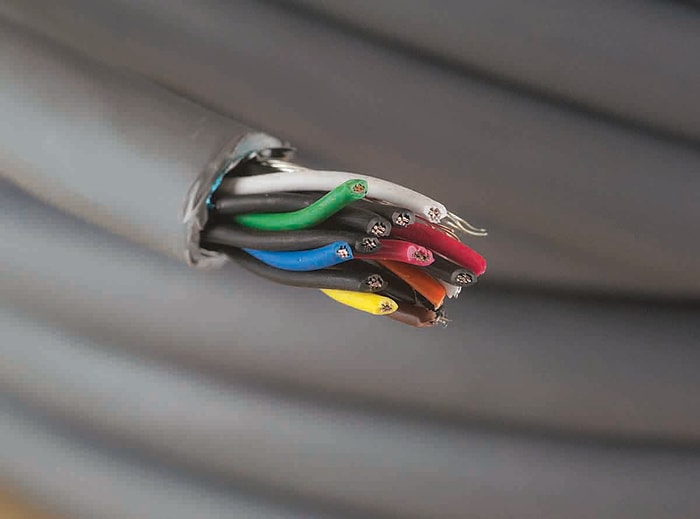

Foil Shielded Multi-pair

The Alpha Wire foil shielded multi-pair cable contains 24 AWG stranded tinned copper wire conductors; the foil shield is made of aluminium/mylar tape facing inwards. The low capacitance of this cable improves transmission and signal integrity.

Features and benefits

Foil shield offers good high-frequency shielding
Stranded tinned copper conductors improve flexibility
PVC insulation provides good resistance to abrasion, chemicals, and water
Flame Retardant to rating FT4

Applications

Audio systems: speakers, microphones, intercoms
Broadcast and studio
Data transmission: RS-232, 422, 485
CAD/CAM
Computer peripherals
Business machines
Security systems: alarms, cameras, sensors
Control systems
Instrumentation systems
Point-of-sale systems
Banking systems
