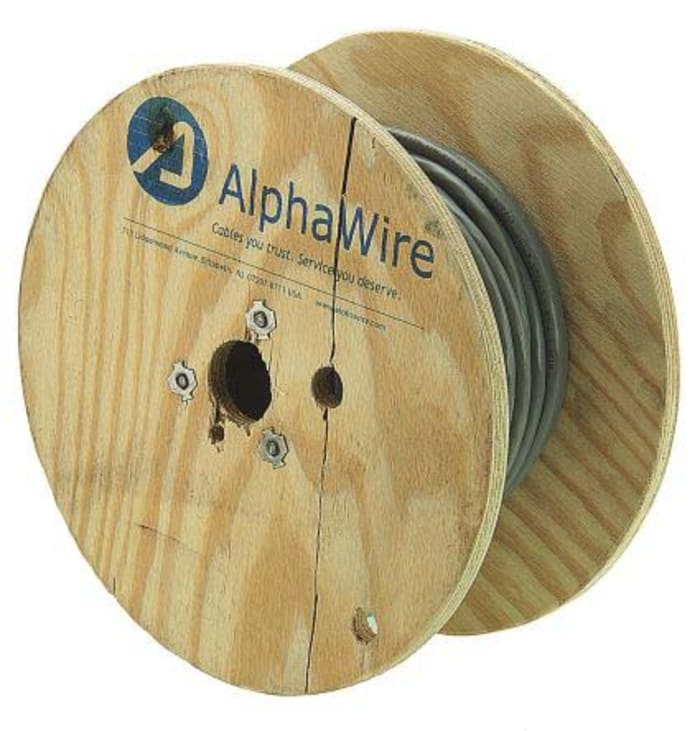

Alpha Wire Xtra-Guard 1 Multicore Industrial Cable, 20 Cores, 0.23 mm², Screened, 30m, Grey PVC Sheath, 24 AWG

Name: Alpha Wire Xtra-Guard 1 Multicore Industrial Cable, 20 Cores, 0.23 mm², Screened, 30m, Grey PVC Sheath, 24 AWG
Brand: Alpha Wire
SKU: 0409208

RS Stock No.: 409-208Brand: Alpha WireManufacturers Part No.: 5100/20C SL005

View all in Control Cable

Technical Documents

Specifications

Brand

Alpha Wire

Series

XTRA-GUARD 1

Number of Cores

Cross Sectional Area

0.23 mm²

Screened/Unscreened

Screened

Length

30m

Sheath Colour

Grey

American Wire Gauge

24 AWG

Outer Diameter

7.72mm

Sheath Material

Polyvinyl Chloride PVC

Standards Met

CE, CSA, UL

Core Strands

7/0.20 mm

Conductor Resistance

85.3 Ω/km

Insulation material

PVC

Fire Behaviour

Flame Retardant

Minimum Operating Temperature

-30°C

Minimum Bend Radius

10 x Diameter

Conductor Material

Tinned Copper

Voltage Rating

300 V

Drain Wire

Yes

Screen Type

Foil

Maximum Operating Temperature

+80°C

Country of Origin

United States

Product Details

Xtra Guard 1 - Foil Shield

The Alpha Wire Xtra Guard 1 - Foil Shield is a high performance industrial cable. The foil shield provides moderate EMI protection, especially at lower frequencies. A tinned copper drain wire makes grounding the cable easy.

Features and Benefits

High performace cable
Good water and chemical resistance
60°C Oil (Oil Res I)
Fast, easy stripping of insulation and jacket
Premium grade PVC insulation and jacket
UV resistant, UL SUN RES

Applications

High technology application in controlled environments
Medical electronics
Point of sale equipment
Computer peripherals
Industrial process control

Approvals

UL, CSA

Standards

IEC Flame ratings: IEC 60332-1 & -2, UL SUN RES
