Alpha Wire Braided Copper Silver Cable Sleeve, 30m Length 3 in Cable Diameter, FIT Wire Management Series

Belden FIT Wire Management Series Cable Sleeve, 30m Sleeve Length, Silver - 1230 SV005

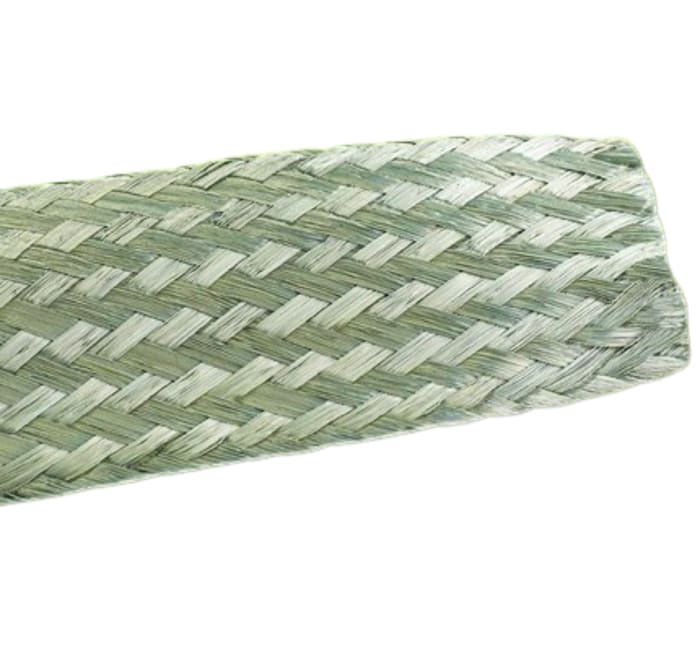

This cable sleeve is a flexible, braided tinned copper sleeve designed to provide conductive shielding and robust cable management in industrial and electronic systems. Supplied in a long continuous length, it serves as a protective covering for wire harnesses where electromagnetic screening, mechanical protection and ease of routing are required.

Features & Benefits

• Tinned copper braid provides conductive shielding and corrosion resistance
  Braided construction offers high flexibility for complex routing
  Wall thickness 0.51mm enhances abrasion resistance and durability
  Usable down to 0.025 in minimises fit issues on small cables
  Available in 30m length for extended continuous runs
  Silver finish enables Visual identification and compatibility with metal assemblies

**Applications**

• Suitable for protecting sensor and control cables in automation systems
  Ideal for screening harnesses in electrical distribution panels
  Used with motor and drive cabling for mechanical protection
  Can be used for routing large bundle assemblies up to 3 in diameter
  Suitable for retrofitting shielding to existing loom installations

How is the sleeve supplied for installation?

It is provided as a continuous braided sleeving on spools with length tolerance -0/+5% for packaged lengths.

What conductor material is used in the braid?

The filaments are tinned copper, offering conductivity and reduced risk of oxidation.

How does the braid accommodate varying cable sizes?

The open woven structure expands to fit a range of diameters while maintaining coverage and flexibility.

Are there limits on minimum piece lengths when cut from standard put-ups?

Minimum individual lengths vary by size
for the smaller profiles the minimum is 50 ft and for other sizes it can be 25 ft according to packaging provisions.
