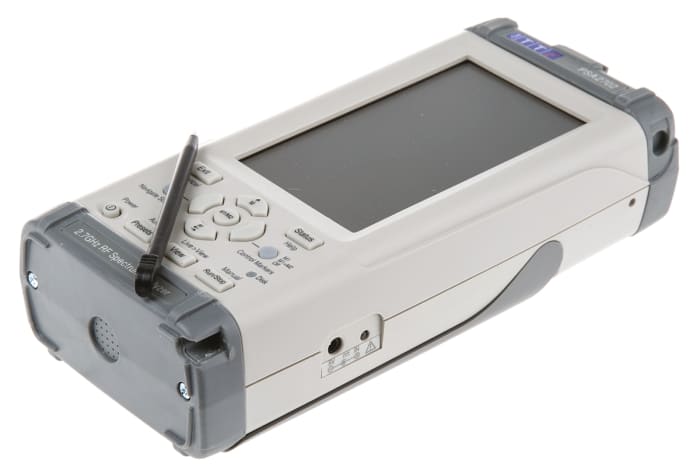

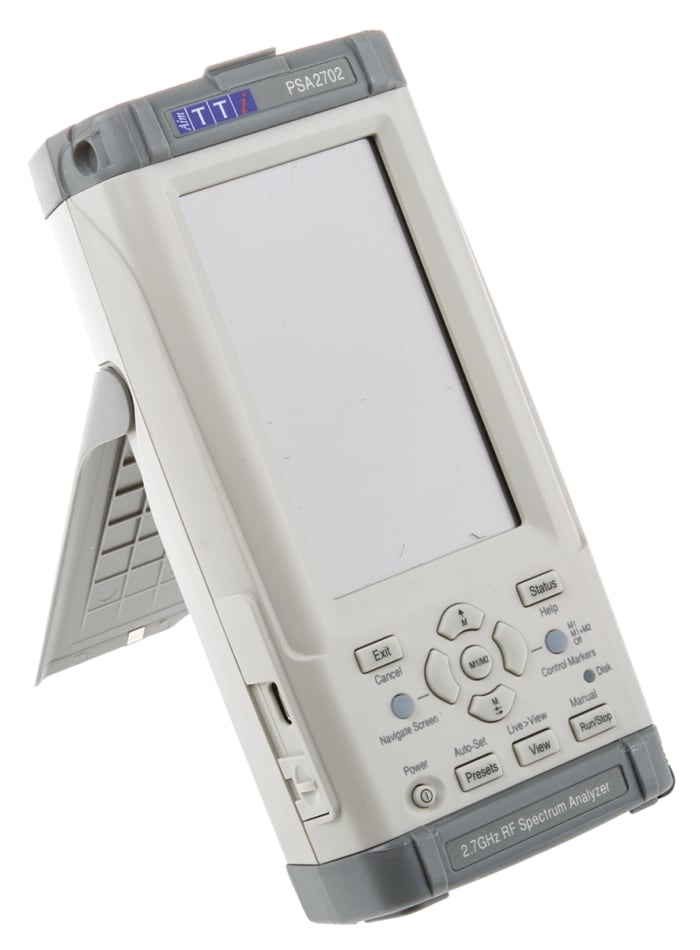

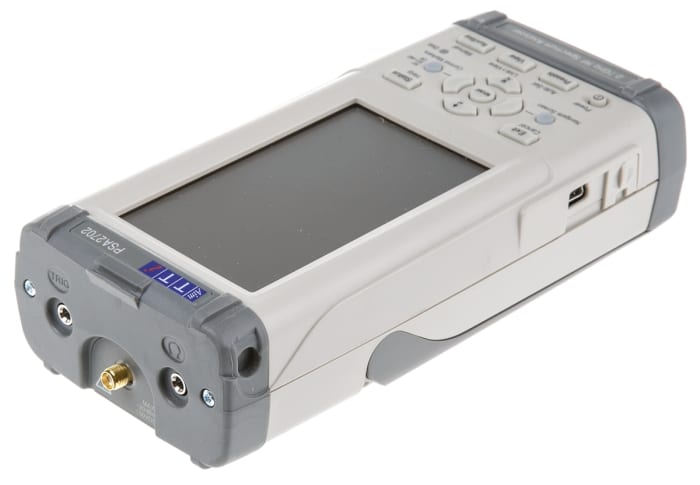

Aim-TTi PSA2702 Handheld Spectrum Analyser, 2.7GHz

Aim-TTi Spectrum Analyser

The Aim-TTi single-channel spectrum analysers operate on the frequency ranging from 1MHz to 2.7GHz. It offers an improved user interface, combined with many new hardware and software features. It has a removable screen protector/sun Shield and rubberised buffers at top and bottom to facilitate the use of analyser in the field It is a compact hand-held device which fits comfortably in your palm, thus works as a perfect field device.

Supplied with:
Universal voltage mains adaptor/charger, USB connection lead, spare stylus, BNC converter for trigger input, multi-language Short Guide, full users' manual (English only), support CD containing PDF versions of manuals and support software.
Note
Battery power is by type Li-ion 3.7V 3000mA-hr battery.

Features and Benefits

• Typical noise floor of -96dBm at -20dBm reference level
  Trace modes of normal, single, peak hold and average
  Display of 4.3in TFT
  Zero span mode with AM and FM audio demodulation
  Live, View and Reference traces in contrasting colours
  Twin markers with readout of absolute and difference values
  Measurement in different units like dBm or dBuV, mV or uW
  Smart marker movement with selectable peak tracking
  Auto-find automatically sets sweep parameters for the highest signal found
  Unlimited storage for waveforms, set-ups and screens
  User assignable file names, file stamping from real-time clock
  USB interfaces for Flash drives and PC connection
  Battery power is by type Li-ion 3.7V 3000mA-hr battery
  Comprehensive status and context sensitive help screens
  4.3 inch colour backlit TFT display with touchscreen
  More than 8 hours continuous operation from a charge
  Length is 92mm, width is 49mm and height is 192mm

Applications

• Telecommunication
  Electronics laboratories
  Educational institutes
  Electronics designing
  Service and maintenance

Certifications

• EN61010-1
  EN61326
