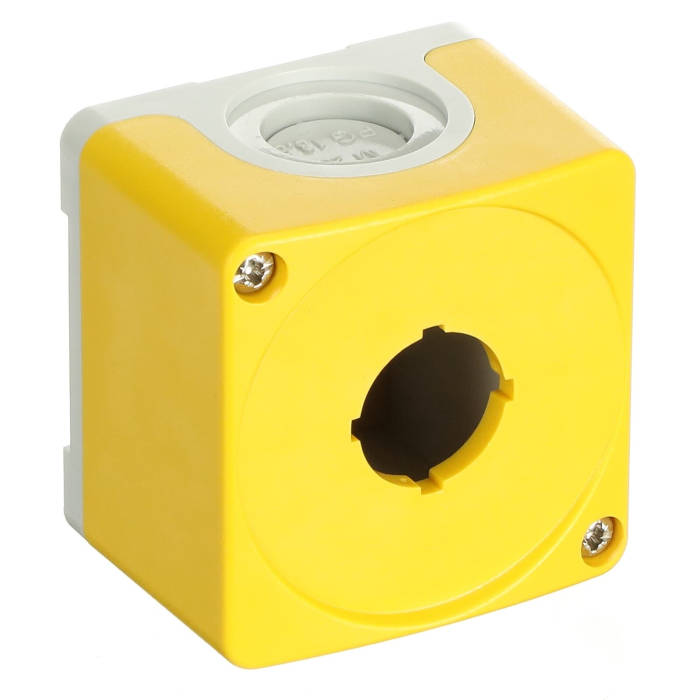

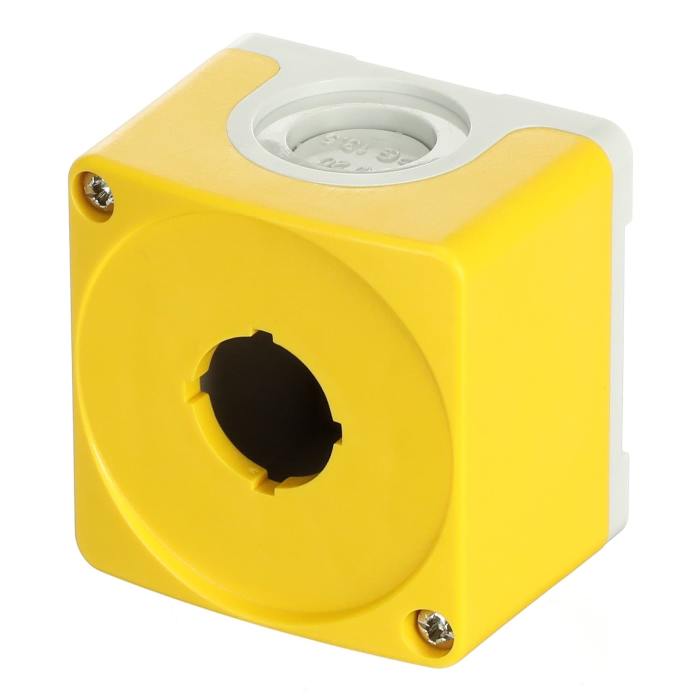

ABB Yellow Plastic ABB Compact Push Button Enclosure - 1 Hole 22 mm Diameter

ABB Compact Series Push Button Enclosure, 22mm Cutout Diameter, Yellow - 1SFA619821R1000 CEPY1-0

This push button enclosure provides a protective housing for a single control operator in demanding industrial settings. Designed for panel mounting with a 22mm panel aperture, it offers a Compact footprint and a high degree of protection against ingress, making it suitable for machinery control panels and harsh process environments.

Features and Benefits:

• IP66, IP67 and IP69K protection for wet and wash-down environments Single cut-out design simplifies panel installation and wiring Plastic construction reduces weight and electrical conductivity RoHS compliance supports restricted-substance requirements Operates between -30°C and 70°C for varied temperature conditions

Applications

• Suitable for machine control stations requiring wash-down protection Ideal for outdoor control panels exposed to dust and moisture Used for safety and shut-down push buttons in processing plants Can be used in automotive and food production equipment panels

What mounting footprint does it require for panel integration?

It needs a 22mm diameter aperture and a single cut-out for the operator to pass through, allowing straightforward panel-mount installation.

How much enclosure depth is available behind the panel for actuator and wiring?

There is 48mm of internal depth behind the cut-out to accommodate actuator stems and Terminal connections.

What are the external package dimensions for space planning?

The housing measures 65 x 65mm across the exterior faces, providing a Compact square profile for tight panel layouts.

What colour and materials are used to aid Visual identification and durability?

The enclosure is yellow and moulded from plastic to offer clear visibility and lightweight resistance to corrosion.
