ABB Compact Series Push Button Switch, Maintained, Panel, 22 mm Cutout, DPST, IP20, IP66, IP67, IP69K, 125 V 230 V ac

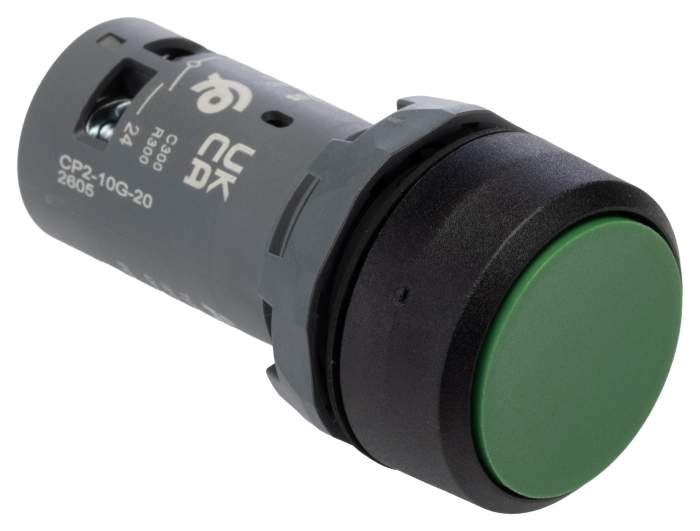

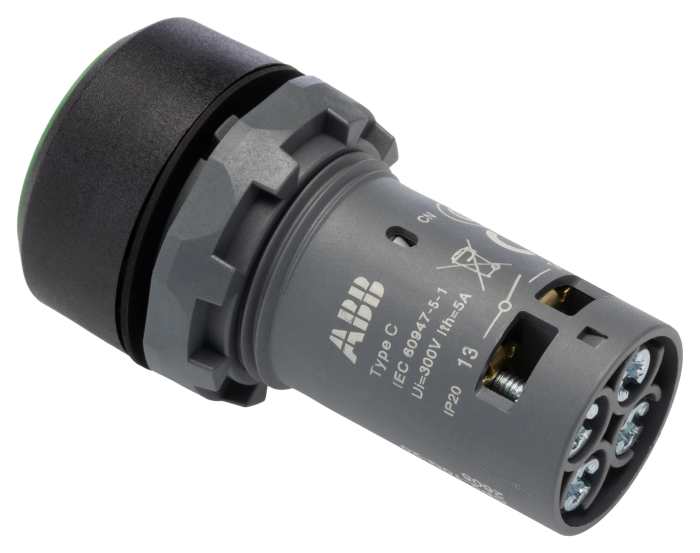

ABB Compact Series Push Button Switch, Green Actuator, 22mm Panel Cutout Size - 1SFA619101R1022 CP2-10G-20

This push button switch provides a Compact panel-mounted control solution for industrial environments, enabling maintained on/off operation in control circuits. It is designed for rugged use on machinery and control panels where a green, round actuator offers clear Visual identification without illumination. The unit uses a screw-terminal connection and complies with recognised safety standards for electrical switching.

Features and Benefits:

• DPST contact arrangement offers simultaneous dual-circuit control Rated for 230V AC switching to handle mains control loads 125V DC capability supports low-voltage DC circuits Maintained operation ensures stable latched state after actuation IP66 IP67 IP69K ingress protection for harsh environment resilience 2A contact current rating suitable for control and signalling circuits

Applications

• Suitable for factory automation control panels requiring clear status indication Ideal for motor start/stop control in production equipment Used with control relays and contactors for dual-circuit switching Can be used for electrical distribution kiosks in outdoor cabinets Used for equipment interfaces in food processing with wash‑down requirements

What mounting size is required to install this switch?

The switch fits into a 22mm panel cutout designed for standard round launch buttons.

Which Terminal type is provided for wiring connections?

Screw terminals are supplied to secure conductor connections reliably.

What temperature range can it operate within?

It operates between -25°C and 70°C for typical industrial ambient conditions.

Is the actuator illuminated for status feedback?

The actuator is non-illuminated, providing a plain green Visual without integrated lighting.

Which standards underpin its electrical design?

It meets IEC 947-5-5 and EN 60204 requirements for control switching devices.
