Technical Documents
Specifications
Brand
4D SystemsDiagonal Display Size
0.96in
Product Type
Arduino Compatible Display
Display Technology
OLED Display
Display Resolution
96 x 64 pixel
External Dimensions
32.7 x 26.7 x 13.2 mm
Viewing Area Dimensions
20.1 x 13.4 mm
For Use With
Arduino
Interface Type
GPIO, SPI
Standards/Approvals
No
Country of Origin
Philippines
Product Details

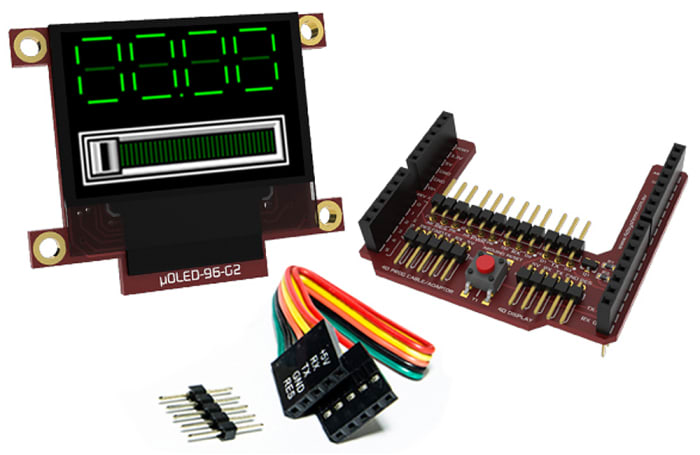

The range of passive matrix OLED display modules for Arduino available from 4D Systems provide everything needed by a user to easily interface between an Arduino (using its serial port + one GPIO pin) and the OLED module, eliminating wiring headaches. The user can then quickly begin programming the 4D Systems display module through the Arduino. This display is a secondary display and does not replace the monitor or TV used to program the Arduino itself.
Powered from the Arduino the display module GOLDELOX processor can be programmed and configured using 4D Systems Workshop4 IDE software (see datasheet for download instruction). The OLED module is set up to receive a wide range of serial commands from the Arduino, for example, to display shapes, text, images, to play sounds and log data to the microSD card.
Arduino MCU module is not included.
Stock information temporarily unavailable.
€ 44.69
€ 44.69 Each (Exc. VAT)
1
€ 44.69
€ 44.69 Each (Exc. VAT)
Stock information temporarily unavailable.
1
