Technical Documents
Specifications
Brand
4D SystemsDiagonal Display Size
88.9mm
Product Type
TFT LCD Display
Interface Type
SPI
Screen Resolution
320 x 480 pixel
Current
120mA
Touch Screen
No
Viewing Area Dimensions
48.96 x 73.44 mm
Backlight Type
LED
Minimum Supply Voltage
2.8V
Maximum Supply Voltage
3.3V
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
70°C
Height
83mm
Depth
73.44mm
Standards/Approvals
CE, RoHS Compliant
Width
54.5mm
Brightness
320cd/m²
Contrast Ratio
1000:1
Power Supply Included
No
Series
4DLCD
Display Type
TFT
Country of Origin
China
Product Details

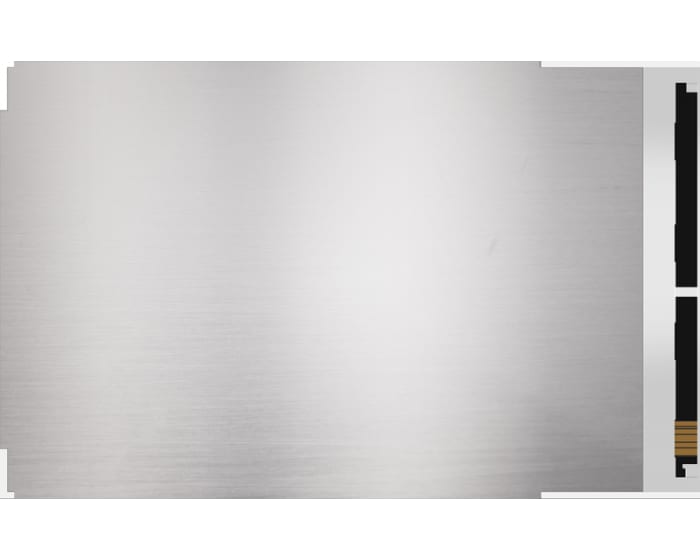

The 4D Systems color active-matrix LCD module incorporating amorphous silicon TFT IPS (Thin Film Transistor). It is composed of a color IPSTFT-LCD panel, driver IC, FPC and a backlight unit. The module display area contains 320 x 480 pixels and can display up to 262K colors. This product accords with RoHS environmental criterion. This is a Raw TFT Display, it features no processor and cannot be programmed directly. It needs to be coupled with a Processor and circuitry capable of driving this type of display. For complete modules ready to go, please refer to our Intelligent Display Module products.
Stock information temporarily unavailable.
€ 30.18
€ 30.18 Each (Exc. VAT)
1
€ 30.18
€ 30.18 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 30.18 |
| 5 - 9 | € 29.78 |
| 10+ | € 29.36 |
