Technical Documents
Specifications
Brand
4D SystemsProduct Type
LCD Colour Display
Diagonal Display Size
109.22mm
Interface Type
Parallel, Serial
Current
600mA
Screen Resolution
480 x 272 pixel
Touch Screen
Yes
Touch Screen Type
Resistive
Backlight Type
LED
Minimum Supply Voltage
5V
Maximum Supply Voltage
5V
Minimum Operating Temperature
-15°C
Maximum Operating Temperature
70°C
Standards/Approvals
CE, RoHS
Width
120.4mm
Height
80.0mm
Brightness
400cd/m²
Series
4DCAPE
Display Type
LCD
Aspect Ratio
16:9
Contrast Ratio
500:1
Power Supply Included
No
Country of Origin
Philippines
Product Details

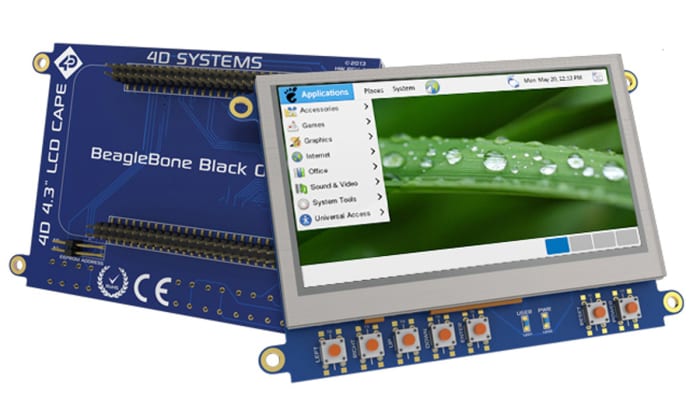

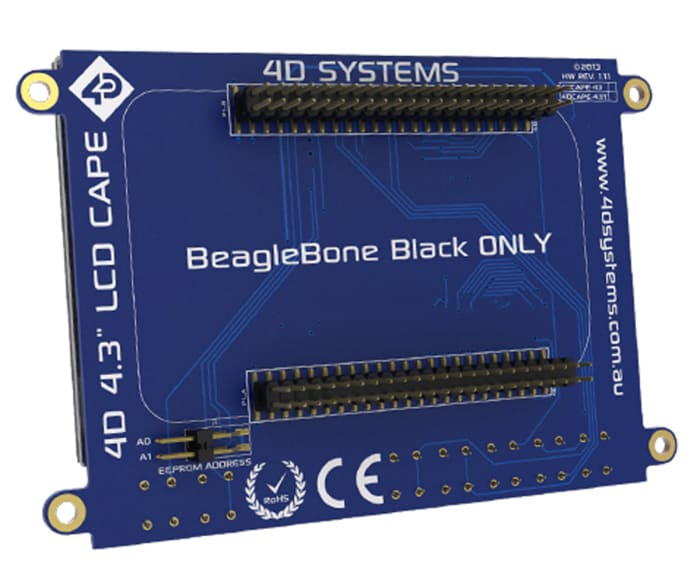

The 4D Systems 4.3in LCD Cape is designed for the BeagleBone Black (BBB). It functions as the primary display for the BBB whilst allowing additional CAPES to be added too. There are seven push buttons on the CAPE; left, right, up, down, enter, reset and power. There are also two LEDs, which indicate the power and user status. The BeagleBone Black simply connects to the back of the CAPE, providing it with everything it requires to function, for example, power and display signals. Four mounting holes allow for easy panel and enclosure mounting. All of these features are designed to aid the user in a quick and easy set-up, keeping time and number of components to a minimum. The CAPES also comes with a Quick Start User Guide.
Stock information temporarily unavailable.
€ 56.89
€ 56.89 Each (Exc. VAT)
1
€ 56.89
€ 56.89 Each (Exc. VAT)
Stock information temporarily unavailable.
1
