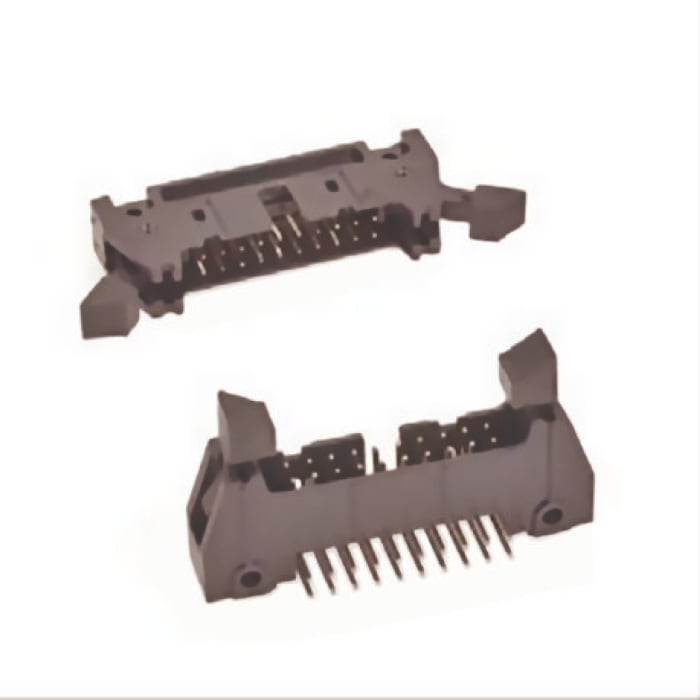

3M 3000 Series Right Angle Through Hole PCB Header, 64 Contact(s), 2.54 mm Pitch, 2 Row(s), Shrouded
Technical Document
Specifications
Brand
3MSeries
3000
Product Type
PCB Header
Pitch
2.54mm
Current
1A
Number of Contacts
64
Housing Material
Glass Filled Polyester
Number of Rows
2
Orientation
Right Angle
Shrouded/Unshrouded
Shrouded
Mount Type
Through Hole
Connector System
Board-to-Board, Wire-to-Board
Contact Material
Copper Alloy
Contact Plating
Nickel
Minimum Operating Temperature
-55°C
Row Pitch
2.54mm
Termination Type
Solder
Tail Pin Length
0.01in
Contact Gender
Male
Maximum Operating Temperature
105°C
Mating Pin Length
6.2mm
Standards/Approvals
No
Voltage
25 V
Product details
HE 10 angled solder connectors with short locks
Transition connectors fitted with long locks / ejectors designed for locking HE 10 female connectors without strain relief accessories.
