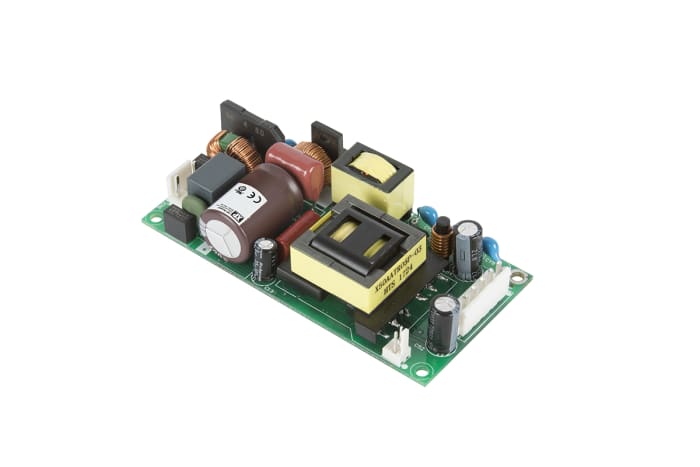

XP Power Switching Power Supply, ECP150PS15 15V dc, 10A, 150 W, Input 120 V dc, 90V ac to 264V ac
Technical Document
Specifications
Brand
XP PowerProduct Type
Switching Power Supply
Maximum Output Voltage
15V dc
Number of Outputs
1
Mount Type
Chassis
Power
150W
SMPS Output Current
10A
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
70°C
Standards/Approvals
ANSIAAMI ES 606011, EN 606011, EN 609501, IEC 606011, IEC 609501, UL 609501
Width
50.8mm
Depth
29.5mm
Length
101.6mm
Weight
190g
Series
ECP
Maximum Input Voltage
264V ac
Efficiency
91%
Hazardous Area Certification
No
Minimum Input Voltage
120, 90V dc
Output Current
10A
Country of Origin
Taiwan, Province Of China
Product details
XP Power - ECP150 Series Switch Mode Power Supply
XP Power ECP150 series of 150 W power supply provides the user with a low cost PCB mount power solution to a wide variety of applications. The ECP150 series offers an output voltage of 5 to 15 V, with a very low load input power of <0.3 W. The series has been designed to adhere to the latest environmental legislation.
The low profile nature of the series offers a compact & reliable medical and ITE approved range of power supplies.
Features and Benefits
2" x 4" footprint.
100 W convection cooled, 150 W forced cooled.
<0.5 W no load input power.
12 V to 48 V single output.
Integral fan supply.
Switch Mode - XP Power
Stock information temporarily unavailable.
€ 105.17
€ 105.17 Each (Exc. VAT)
1
€ 105.17
€ 105.17 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 105.17 |
| 5 - 9 | € 102.02 |
| 10 - 24 | € 98.87 |
| 25 - 49 | € 95.71 |
| 50+ | € 92.56 |
