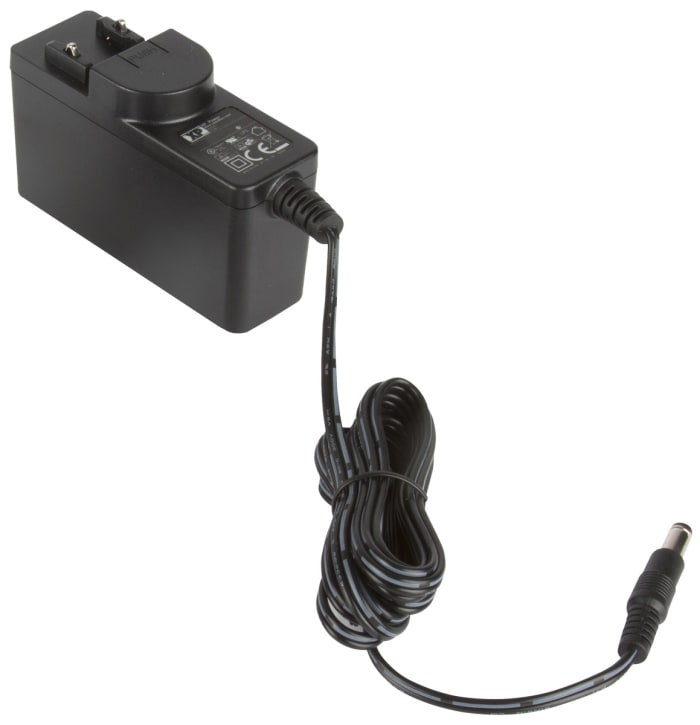

XP Power 24 W AC/DC Adapter AC/DC Adapter Australia, EU, UK, US 9V dc Output, 2.33 A
Technical Document
Specifications
Brand
XP PowerProduct Type
AC/DC Adapter
Sub Type
AC/DC Adapter
Plug Type
Australia, EU, UK, US
Output Voltage
9V dc
Power
24W
Output Connector Type
2.5 x 5.5 x 11 mm Centre Positive
Cable Length
1.8m
Number of Outputs
1
Minimum Operating Temperature
0°C
Input Connector Type
Universal Plug
Adapter Current
2.33A
Maximum Operating Temperature
60°C
Depth
57mm
Length
88mm
Standards/Approvals
UL 60950-1, EN 60950-1, CE, CB
Width
30mm
Efficiency
85.2%
Maximum Input Voltage
264V ac
Energy Efficiency Level
VI
Series
ACM24
Load Regulation
5 %
Minimum Input Voltage
100V ac
Product details
ACM24 Series AC to DC Plug In Power Supplies
From XP Power, a range of 24 W AC to DC energy efficient medically approved plug-in power supplies. The ACM24 series of plug-in power supplies are available with output voltages from 9 V to 24 V. All have a standard 2.5 x 5.5 x 11 mm DC power jack. The ACM24 power supplies consist of the main body only and are suitable for use with interchangeable mains connectors dependent on the country of use. See typical part numbers 124-1939 124-1940 and 124-1938
Features and Benefits
• Output voltages from 9 V to 24 V
• Energy efficiency Level VI
• Medical and ITE Approvals
• Interchangeable mains connectors sold separately
• European CoC Tier 2
• Class II construction
Applications
• Industrial
• Medical
AC to DC Plug In Power Supplies - XP Power
