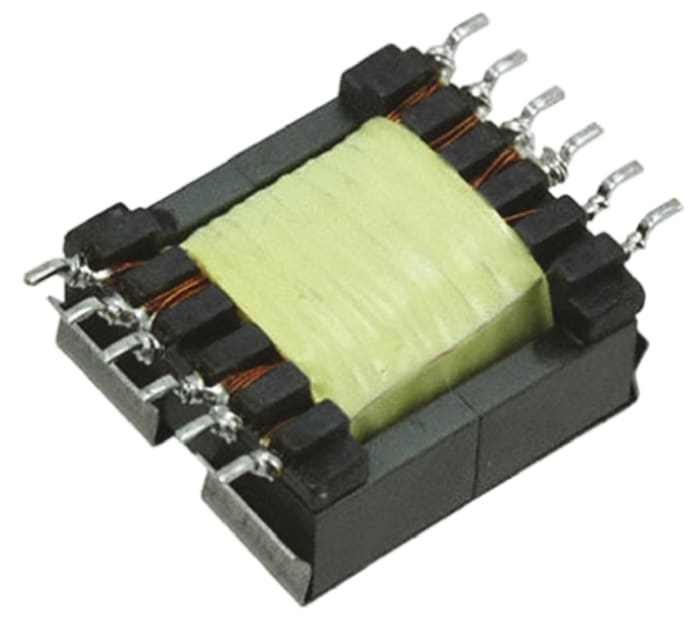

Wurth Elektronik Surface Mount Pulse Transformer 1.5:1 Turns Ratio, 8μH Prim. Inductance, 0.015Ω Prim. Resistance

RS Stock No.: 756-7538Brand: Wurth ElektronikManufacturers Part No.: 750311591
brand-logo
View all in Pulse Transformers

Technical Document

Specifications

Brand

Wurth Elektronik

Primary Inductance

8µH

Primary DC Resistance

0.015Ω

Secondary DC Resistance

0.012Ω

Turns Ratio

1.5:1

Mounting Type

Surface Mount

Leakage Inductance

400nH

Dimensions

32.31 x 27.03 x 13.69mm

Depth

13.69mm

Length

32.31mm

Width

27.03mm

Secondary Voltage Rating

10 V, 15 V

Minimum Temperature

-40°C

Isolation Voltage

2.5kV

Maximum Temperature

+125°C

Product details

Wurth Flyback Transformers

Designed specifically for DC-DC convertors and offline PWM switching regulators
The transformer is much smaller than a normal mains transformer for the same power rating due to the high operating frequency
