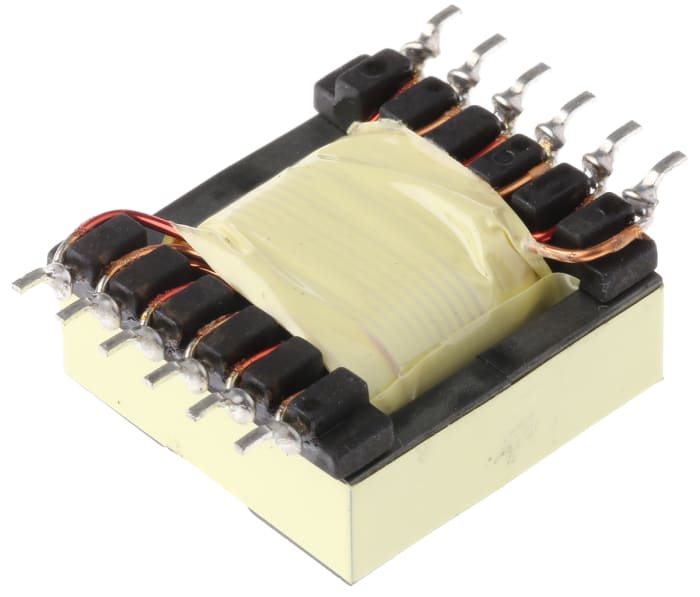

Wurth Elektronik Surface Pulse Transformer 1:1:1:1:1:1 Turns Ratio, 9.9 μH Prim. Inductance, 30mΩ Prim. Resistance
Technical Document
Specifications
Brand
Wurth ElektronikProduct Type
Pulse Transformer
Primary Inductance
9.9μH
Primary DC Resistance
30mΩ
Current
1.91A
Turns Ratio
1:1:1:1:1:1
Mount Type
Surface
Leakage Inductance
0.18μH
Minimum Operating Temperature
-40°C
Number of Pins
12
Maximum Operating Temperature
125°C
Length
21mm
Depth
10.8mm
Maximum Operating Frequency
1MHz
Standards/Approvals
RoHS
Width
21mm
Series
WE‑BMS
Isolation Voltage
500V dc
Product details
WE-FLEX Transformers
3x2 windings
Isolation voltage 500Vdc
Low stray inductance
Operating temperature: -40°C to +125°C
Applications include: flyback, forward, push-pull, step-down, step-up, SEPIC converters
