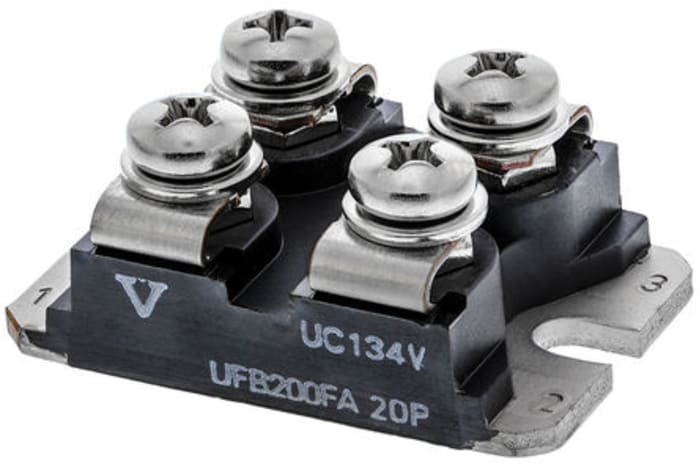

Vishay 200V 120A, Dual Silicon Junction Diode, 4-Pin SOT-227 VS-UFB200FA20P

RS Stock No.: 700-1306Brand: VishayManufacturers Part No.: VS-UFB200FA20P
brand-logo
View all in Schottky Diodes & Rectifiers

Technical Document

Specifications

Brand

Vishay

Mounting Type

Panel Mount

Package Type

SOT-227

Maximum Continuous Forward Current

120A

Peak Reverse Repetitive Voltage

200V

Diode Configuration

Isolated

Diode Type

Silicon Junction

Pin Count

4

Maximum Forward Voltage Drop

1.1V

Number of Elements per Chip

2

Peak Reverse Recovery Time

45ns

Peak Non-Repetitive Forward Surge Current

1.7kA
