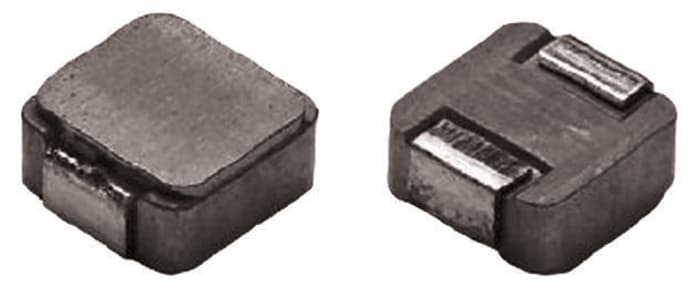

Vishay, IHLP-1616BZ-11, 1616 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 1 μH ±20% Shielded 4.5A Idc

RS Stock No.: 748-6791PBrand: VishayManufacturers Part No.: IHLP1616BZER1R0M11
brand-logo
View all in Surface Mount Inductors

Technical Document

Specifications

Brand

Vishay

Inductance

1 μH

Maximum dc Current

4.5A

Package/Case

1616

Length

4.45mm

Depth

4.06mm

Height

2mm

Dimensions

4.45 x 4.06 x 2mm

Shielded

Yes

Tolerance

±20%

Maximum DC Resistance

27mΩ

Series

IHLP-1616BZ-11

Core Material

Metal Composite

Maximum Self Resonant Frequency

64MHz

Moulded

Yes

Maximum Operating Temperature

+125°C

Minimum Operating Temperature

-55°C

Inductor Construction

Shielded

Product details

IHLP1616BZ-11 Series Magnetically Shielded Wire Wound Chokes

Vishay IHLP-1616BZ-11 series high current low profile shielded inductors. The IHLP-1616BZ-11 series handles high transient current spikes without saturation and has ultra low buzz noise due to its composite construction.

Frequency range up to 1.0 MHz
Lowest DC Resistance / μH, in this package size

Applications include: PDA/notebook/desktop/server devices; High current POL converters; Low profile, high current power supplies; Battery powered devices; DC/DC converters in distributed power systems; DC/DC converter for Field Programmable Gate Array (FPGA)
