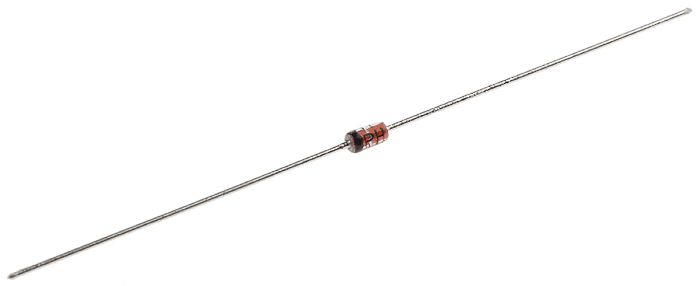

Vishay Silicon Junction, Single, 200 mA, 2-Pin 250 mV DO-35 BAV21-TAP
Technical Document
Specifications
Brand
VishayDiode Configuration
Single
Product Type
Silicon Junction
Maximum Forward Current If
200mA
Sub Type
Silicon Junction
Mount Type
Through Hole
Package Type
DO-35
Pin Count
2
Peak Reverse Recovery Time trr
50ns
Minimum Operating Temperature
-65°C
Peak Non-Repetitive Forward Surge Current Ifsm
1A
Maximum Peak Reverse Repetitive Voltage Vrrm
250mV
Maximum Forward Voltage Vf
1V
Maximum Power Dissipation Pd
250mW
Maximum Operating Temperature
175°C
Width
1.7 mm
Height
1.7mm
Length
3.9mm
Standards/Approvals
No
Automotive Standard
No
Product details
Glass Passivated Junction Fast Switching Plastic Rectifier
Features
• Superectifier structure for high reliability condition
• Cavity-free glass-passivated junction
• Fast switching for high efficiency
• Low leakage current, typical IR less than 0.2 μA
• High forward surge capability
• Solder dip 275 °C max. 10 s, per JESD 22-B106
Typical Applications
High voltage rectification of G2 grid CRT and TV, snubber
circuit of camera flash.
Mechanical Data
Case: DO-204AL, molded epoxy over glass body
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Terminals: Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test
Polarity: Color band denotes cathode end
