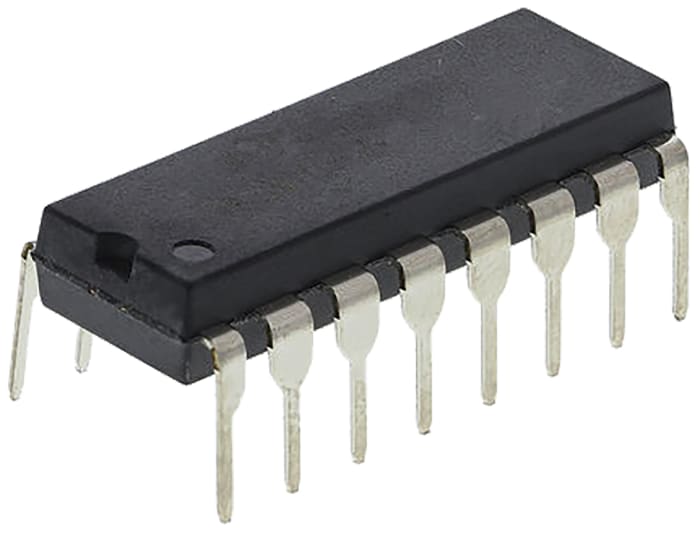

Texas Instruments UC3825N, PWM Current Mode Controller, Dual-Channel 1.5 A, 1, 16-Pin PDIP

RS Stock No.: 661-5291Brand: Texas InstrumentsManufacturers Part No.: UC3825N
brand-logo
View all in PWM

Technical Document

Specifications

Brand

Texas Instruments

Maximum Switching Frequency

1000 kHz

Output Current

1.5 A

Control Method

Current, Voltage

Mounting Type

Through Hole

Fall Time

30ns

Package Type

PDIP

Rise Time

30ns

Pin Count

16

Topology

Boost, Buck, Flyback, Forward, Full Bridge, Half Bridge, Push-Pull

Maximum Duty Cycle

85%

Dimensions

19.3 x 6.35 x 4.57mm

Length

19.3mm

Width

6.35mm

Height

4.57mm

Minimum Operating Temperature

0 °C

Maximum Operating Temperature

+70 °C

Country of Origin

Philippines
