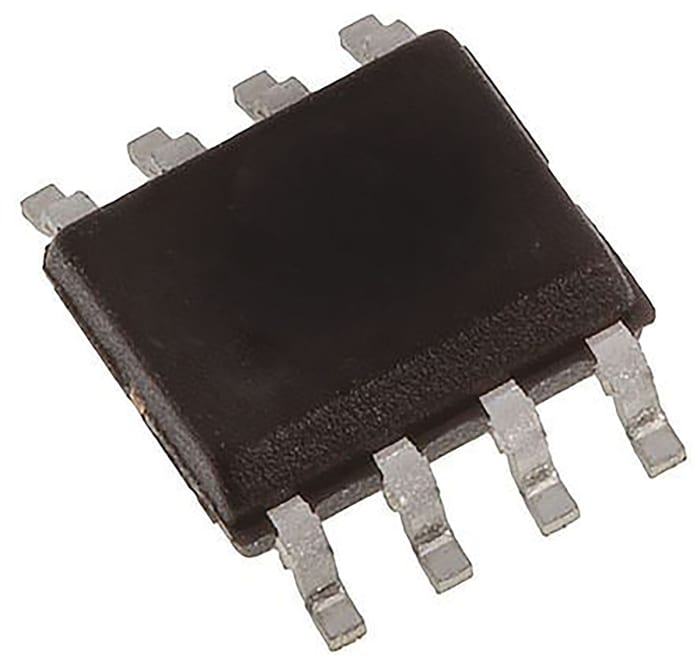

TLC4502AID Texas Instruments, Precision, Op Amp, 4.7MHz, 5 V, 8-Pin SOIC

RS Stock No.: 661-1842Brand: Texas InstrumentsManufacturers Part No.: TLC4502AID
brand-logo
View all in Op Amps

Technical Document

Specifications

Brand

Texas Instruments

Amplifier Type

Precision

Mounting Type

Surface Mount

Package Type

SOIC

Power Supply Type

Dual, Single

Number of Channels per Chip

2

Pin Count

8

Typical Single Supply Voltage

5 V

Typical Gain Bandwidth Product

4.7MHz

Typical Dual Supply Voltage

±3V

Typical Slew Rate

2.5V/µs

Minimum Operating Temperature

-40 °C

Maximum Operating Temperature

+125 °C

Rail to Rail

No

Typical Voltage Gain

120 dB

Height

1.58mm

Dimensions

4.9 x 3.91 x 1.58mm

Length

4.9mm

Width

3.91mm

Typical Input Voltage Noise Density

70nV/√Hz

Product details

Precision LinCMOS Operational Amplifiers
