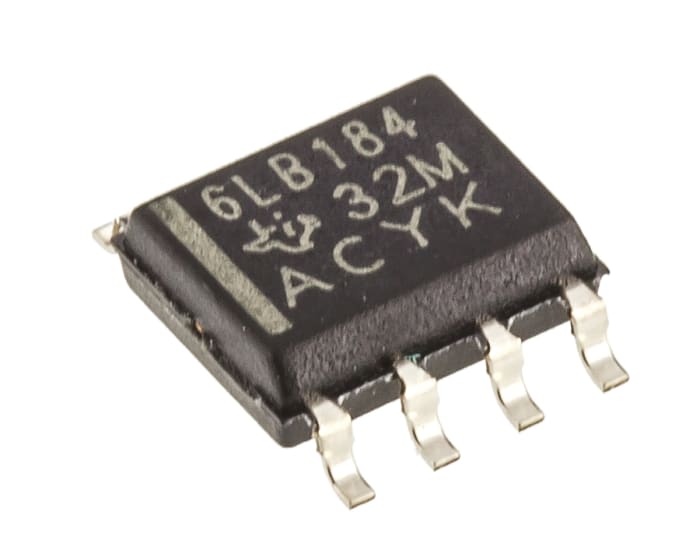

Texas Instruments SN75LBC184D 1-Channel Line Transceiver, Differential, Non-Inverting, 8-Pin SOIC

RS Stock No.: 527-035Brand: Texas InstrumentsManufacturers Part No.: SN75LBC184D
brand-logo
View all in Line Interface ICs

Technical Document

Specifications

Brand

Texas Instruments

Logic Family

SN75

Product Type

Line Transceiver

Logic Function

Line Transceiver

Number of Channels

1

IC Type

Line Transceiver

Input Type

Differential

Output Type

Differential

Polarity

Non-Inverting

Mount Type

Surface

Package Type

SOIC

Minimum Supply Voltage

4.75V

Pin Count

8

Maximum Supply Voltage

5.25V

Maximum High Level Output Current

-60mA

Maximum Low Level Output Current

60mA

Maximum Propagation Delay Time @ CL

150ns

Minimum Operating Temperature

0°C

Maximum Operating Temperature

70°C

Series

SN75LBC184

Height

1.75mm

Length

5mm

Standards/Approvals

No

Automotive Standard

No

Supply Current

25mA

Product details

RS-485 Line Drivers and Receivers, Texas Instruments

RS-485 Line Drivers and Receivers

You may be interested in
View all in Line Interface ICs

Stock information temporarily unavailable.

€ 19.46

€ 3.893 Each (In a Pack of 5) (Exc. VAT)

Texas Instruments SN75LBC184D 1-Channel Line Transceiver, Differential, Non-Inverting, 8-Pin SOIC

5

Available in multiples of 5
5€ 19.46
10€ 38.93
15€ 58.39
20€ 77.85
25€ 84.55
30€ 101.46
35€ 118.37
40€ 135.29
45€ 152.20
50€ 152.24
55€ 167.47
60€ 182.69
65€ 197.91
70€ 213.14
75€ 228.36

€ 19.46

€ 3.893 Each (In a Pack of 5) (Exc. VAT)

Texas Instruments SN75LBC184D 1-Channel Line Transceiver, Differential, Non-Inverting, 8-Pin SOIC

Stock information temporarily unavailable.

5

Available in multiples of 5
5€ 19.46
10€ 38.93
15€ 58.39
20€ 77.85
25€ 84.55
30€ 101.46
35€ 118.37
40€ 135.29
45€ 152.20
50€ 152.24
55€ 167.47
60€ 182.69
65€ 197.91
70€ 213.14
75€ 228.36

QuantityUnit pricePer Pack
5 - 20€ 3.893€ 19.46
25 - 45€ 3.382€ 16.91
50+€ 3.045€ 15.22
