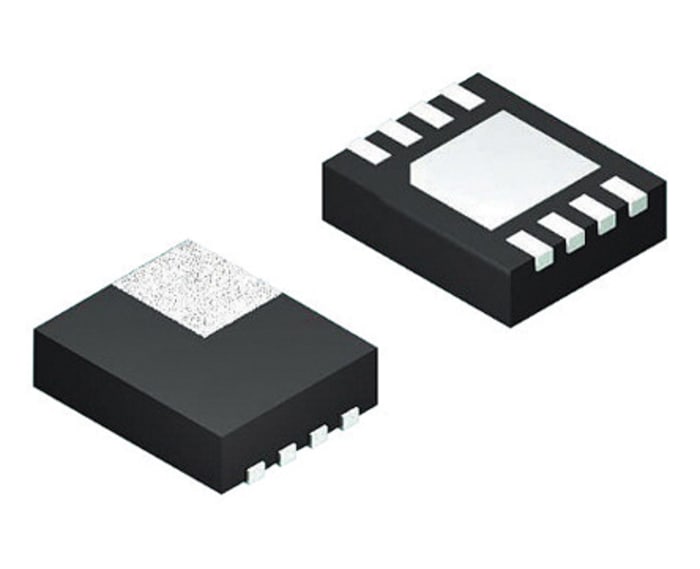

Texas Instruments MOSFET Gate Driver 2, 1 A 8-Pin 14 V, LLP
Technical Document
Specifications
Brand
Texas InstrumentsProduct Type
MOSFET
Output Current
1A
Pin Count
8
Fall Time
15ns
Package Type
LLP
Driver Type
MOSFET
Rise Time
15ns
Minimum Supply Voltage
14V
Number of Drivers
2
Maximum Supply Voltage
14V
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
125°C
Length
4mm
Height
0.8mm
Standards/Approvals
No
Series
LM5109
Mount Type
Surface
Automotive Standard
No
Country of Origin
United Kingdom
Product details
MOSFET & IGBT Half-Bridge Gate Drivers, Texas Instruments
MOSFET & IGBT Drivers, Texas Instruments
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 437.78
€ 0.438 Each (On a Reel of 1000) (Exc. VAT)
1000
€ 437.78
€ 0.438 Each (On a Reel of 1000) (Exc. VAT)
Stock information temporarily unavailable.
1000
