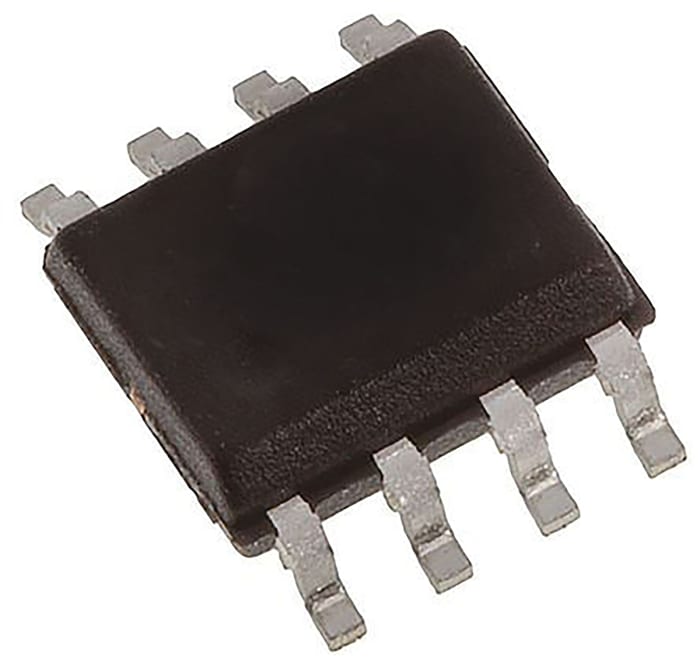

Texas Instruments BQ2000SN-B5, Battery Charge Controller IC, 5 V 8-Pin, SOIC

RS Stock No.: 662-2104Brand: Texas InstrumentsManufacturers Part No.: BQ2000SN-B5IMPA: 0
brand-logo
View all in Battery Management

Technical Document

Specifications

Dimensions

5.5 x 3.5 x 7mm

Maximum Operating Temperature

+70 °C

Battery Type

Lithium-Ion, NiCD, NiMH

Pin Count

8

Minimum Operating Temperature

-20 °C

Mounting Type

Surface Mount

Height

1.58mm

Width

3.91mm

Length

4.9mm

Typical Operating Supply Voltage

5 V

Package Type

SOIC

Dimensions

4.9 x 3.91 x 1.58mm

Brand

Texas Instruments

Product details

Enhanced mTouch™ Capacitive Evaluation Kit

The enhanced mTouch Capacitive Touch Evaluation Kit provides a simple platform for developing a variety of capacitive touch sense applications using PIC16F, PIC18F, PIC24F and PIC32 microcontrollers. The Diagnostic Tool provided allows the user to analyze application-critical information in real-time as it relates to touch sensor behaviour.

Supplied with

Evaluation kit contains: PIC16F CSM Evaluation Board, PIC18F CVD/CSM Evaluation Board, PIC24F CTMU Evaluation Board, PIC32MX CVD Evaluation Board, Direct 8 Key Board, 12-Key Matrix Sensor Board, 4-Channel Slider Sensor Board, 2-Channel Slider Sensor Board, PICkit Serial Analyzer, USB cable.
