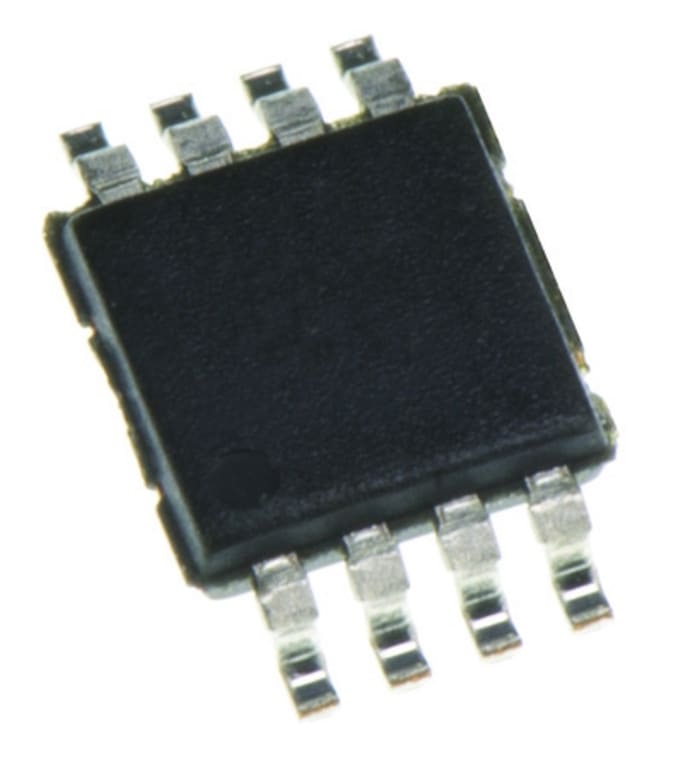

Texas Instruments 1 16 bit- ADC 100 ksps, 8-Pin MSOP

RS Stock No.: 660-4204Brand: Texas InstrumentsManufacturers Part No.: ADS8320EB/250
brand-logo
View all in Analogue to Digital Converters

Technical Document

Specifications

Brand

Texas Instruments

Product Type

ADC

Architecture

SAR

Number of ADCs

1

Resolution

16 bit

Sampling Rate

100ksps

Mount Type

Surface

Input Type

Voltage

Package Type

MSOP

Pin Count

8

Minimum Operating Temperature

-40°C

Interface Type

SPI

Maximum Operating Temperature

85°C

Length

3.1mm

Standards/Approvals

No

Width

3.1 mm

Series

ADS8320

Maximum Supply Voltage

5.25V

Height

1.1mm

Minimum Supply Voltage

2.5V

Automotive Standard

No

Product details

Analogue to Digital Converters 16 Bit, Single-Channel (<=10MSPS), Texas Instruments
