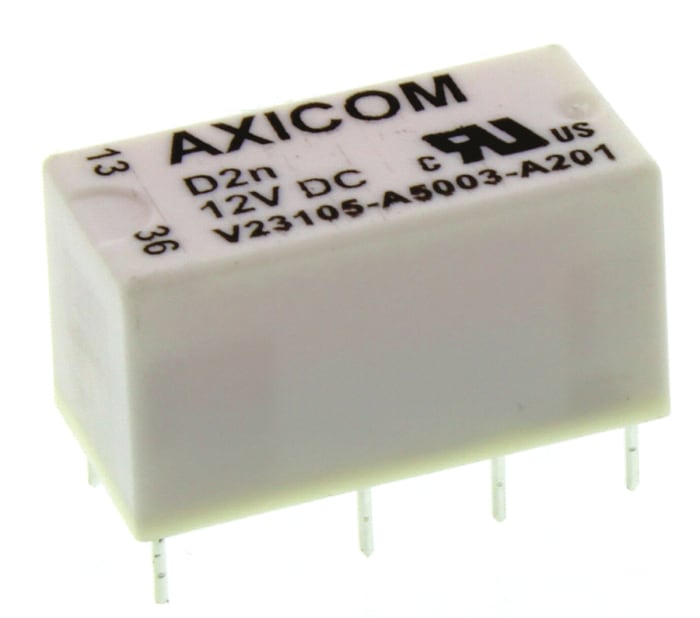

TE Connectivity PCB Mount Power Relay, 12V dc Coil, 3A Switching Current, DPDT
Technical Document
Specifications
Brand
TE ConnectivityCoil Voltage
12V dc
Contact Configuration
DPDT
Mounting Type
PCB Mount
Switching Current
3A
Number of Poles
2
Latching
No
Terminal Type
Through Hole
Length
20.2mm
Coil Resistance
360Ω
Height
11mm
Contact Material
Gold Plated
Minimum Operating Temperature
-25°C
Series
D2n
Maximum Operating Temperature
+75°C
Depth
10mm
Maximum Switching Power AC
125VA
Maximum Switching Power DC
60 W
Application
Signal
Country of Origin
Czech Republic
Product details
D2n Relay 3A
Universal PCB relay
Monostable
1 winding with 2 changeovers
For installation in push-down switches
Plastic housing, washproof
High voltage handling capability in accordance with FCC Part 68: 1.5 kV (10 / 160 μs)
Switching capacity from a low-level signal up to 3 A
Response / release / bounce time: 5 ms / 4 ms / 3 ms
Standard pinning
Applications: communications technology, entertainment electronics, telecommunications
Approvals
UL, CSA
