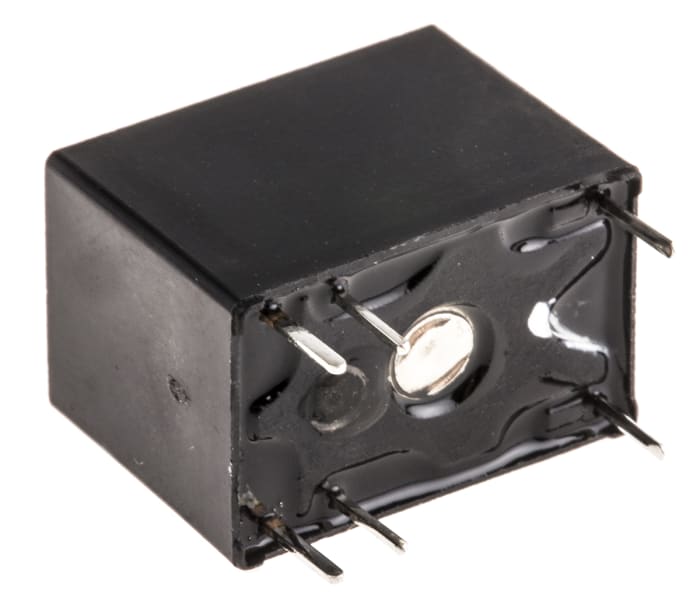

TE Connectivity PCB Mount Signal Relay, 12V dc Coil, 3A Switching Current, SPST
Technical Document
Specifications
Brand
TE ConnectivityCoil Voltage
12V dc
Contact Configuration
SPST
Mounting Type
PCB Mount
Maximum Switching Current DC
3 A
Maximum Switching Voltage AC
125V ac
Maximum Switching Voltage DC
120V dc
Series
ABR/ABS
Maximum Switching Power DC
60 W
Latching
No
Length
15.4mm
Depth
10mm
Height
11.5mm
Dimensions
15.4 x 11.5 x 10mm
Terminal Type
Through Hole
Number of Poles
1
Application
Signal
Switching Current
3A
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+85°C
Isolation Coil To Contact
1kV rms
Features
Multi Purpose Relay, Immersion Cleanable
Coil Power
450mW
Coil Resistance
320Ω
Life
10000000 (Electrical) cycles, 10000000 (Mechanical) cycles
Maximum Switching Power AC
62.5VA
Operating Temperature Range
-40 → +85°C
Contact Material
Gold Plated
Product details
W11 Series
1A signal switching relay (max.)
Contact Material AgPd
Fully sealed
High shock and vibration resistance
Switching Voltage 24 Vdc; 125 Vac
Dimensions: 11.5mm x 10.5mm x 15.5mm
Pin length: 3.5mm
Operating Temperature Range -40 to +85°C
Stock numbers 256-1131 and 256-1147 have an asymmetrical pin assignment
