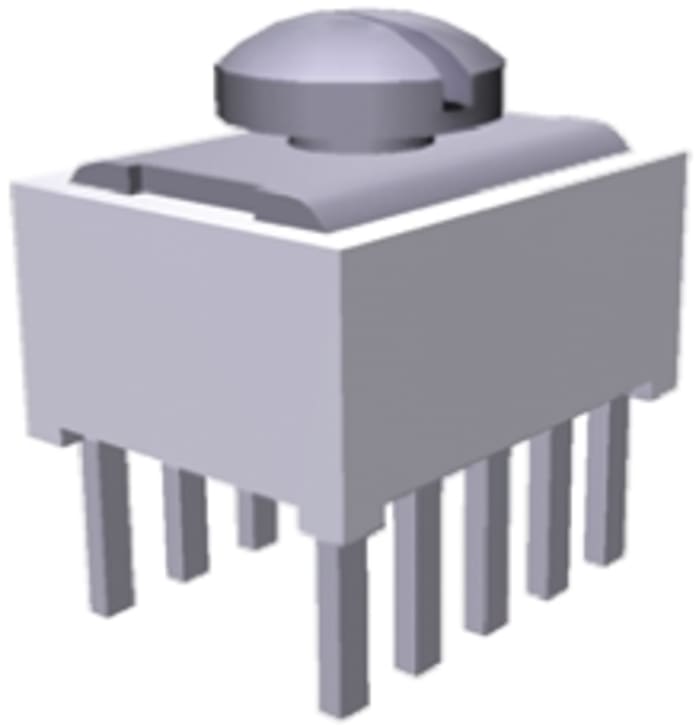

TE Connectivity Nylon Screw Terminal, Straight, 25A
Technical Document
Specifications
Brand
TE ConnectivityProduct Type
Screw Terminal
Orientation
Straight
Current
25A
Snap-In
Yes
Pitch
2.54mm
Number of Legs
10
Body Material
Nylon
Body Plating
Tin
Number of Rows
5
Standards/Approvals
RoHS
Series
55556
Screw Size
6 to 32 mm
Country of Origin
United States
Product details
TE Connectivity Power Tap Connectors
a range of power tap connectors for wire to board connection using ACTION PIN post high current contacts. These power taps are suitable for use with a PCB thickness of 1.57 to 3.18mm.
Stock number 717-6595 is a 25A,10 way insulated, high profile power tap with a 7.62 x 2.54 DIP footprint and nylon GF housing.
Stock numbers 717-6599 and 717-6606 are as above but are low profile
Stock number 717-6621 is a 6 way high current 20A power tap.
Stock number 821-2494 is a 10 way 25A power tap with a 6.35 x 3.18mm footprint
Stock number 718-9422 is an 8 way 40A power linking tap with a 6.35 x 0.81 FASTON tab
TE Connectivity Discrete PCB Connections
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 7.57
€ 7.57 Each (Exc. VAT)
1
€ 7.57
€ 7.57 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 9 | € 7.57 |
| 10 - 19 | € 7.24 |
| 20 - 49 | € 6.90 |
| 50+ | € 6.35 |
