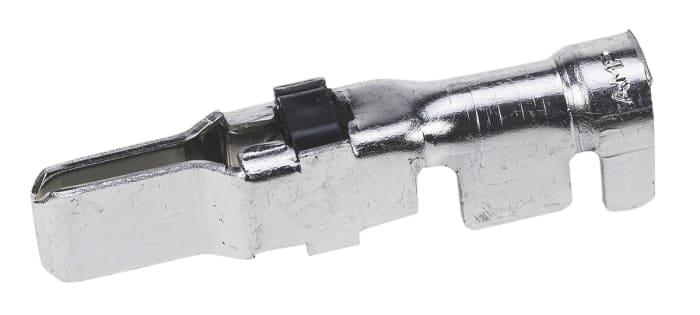

TE Connectivity Male Crimp Circular Connector Contact, Contact Size 16, Wire Size 10AWG, 8 AWG
Technical Document
Specifications
Brand
TE ConnectivityGender
Male
Product Type
Circular Connector Contact
Contact Size
16
Wire Size
10, 8AWG
Current
35A
Series
Type XII
For Use With
Type XII Series Connectors
Contact Type
Power
Length
37.54mm
Contact Plating
Gold over Nickel
Voltage
250V
Minimum Operating Temperature
-55°C
Termination Type
Crimp
Contact Material
Copper
Maximum Operating Temperature
125°C
Standards/Approvals
No
Product details
Series 3 Contacts
Gold plated male and female copper contacts, which will accept wire sizes of 16-12 awg (1·25-3·0mm²) and 10-8 awg (5·0-8·0mm²).Two Certicrimp tools are available to cover 16-12awg and 10-8awg, and an extraction tool is also available.
TE Connectivity CPC Contacts & Tooling
Contacts and Tooling for Series 1, 2 and 3 of the CPC range of connectors.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 142.29
€ 14.229 Each (In a Pack of 10) (Exc. VAT)
10
€ 142.29
€ 14.229 Each (In a Pack of 10) (Exc. VAT)
Stock information temporarily unavailable.
10
| Quantity | Unit price | Per Pack |
|---|---|---|
| 10 - 40 | € 14.229 | € 142.29 |
| 50+ | € 13.944 | € 139.44 |
