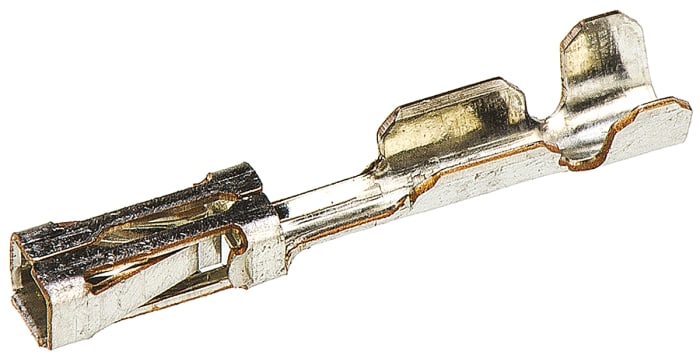

TE Connectivity AMPMODU MOD IV Series Female Crimp Terminal, 26AWG Min, 22AWG Max
Technical Document
Specifications
Brand
TE ConnectivityGender
Female
For Use With
AMPMODU MOD IV Connector Housing
Series
AMPMODU Mod IV
Minimum Wire Size mm²
0.1mm²
Termination Method
Crimp
Maximum Wire Size mm²
0.4mm²
Minimum Wire Size AWG
26AWG
Contact Plating
Gold
Maximum Wire Size AWG
22AWG
Contact Material
Copper Tin Phosphor Bronze
Maximum Contact Resistance
12mΩ
Minimum Operating Temperature
-65°C
Maximum Operating Temperature
+105°C
Product details
TE Connectivity AMPMODU Mod IV Contacts
A range of TE Connectivity AMPMODU Mod IV Contacts.
2.54mm TE Connectivity AMPMODU Mod IV Range
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 37.50
€ 0.375 Each (In a Pack of 100) (Exc. VAT)
100
€ 37.50
€ 0.375 Each (In a Pack of 100) (Exc. VAT)
Stock information temporarily unavailable.
100
Stock information temporarily unavailable.
| Quantity | Unit price | Per Pack |
|---|---|---|
| 100 - 900 | € 0.375 | € 37.50 |
| 1000 - 2900 | € 0.274 | € 27.39 |
| 3000 - 7400 | € 0.26 | € 26.03 |
| 7500 - 14900 | € 0.245 | € 24.55 |
| 15000+ | € 0.233 | € 23.30 |
