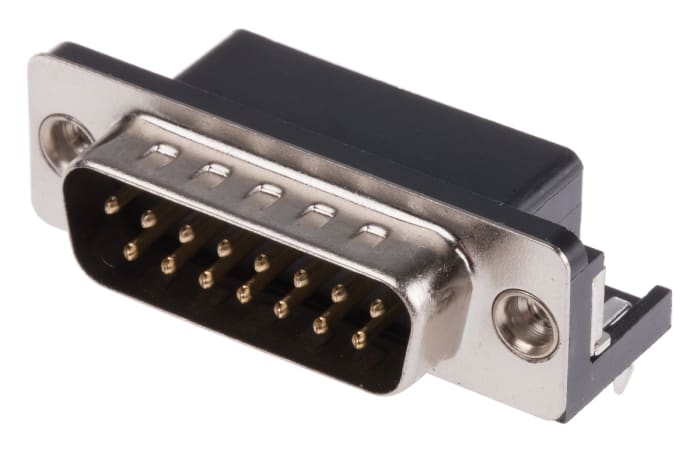

TE Connectivity Amplimite HD-20 15 Way Right Angle Through Hole D-sub Connector Plug, 2.74mm Pitch, with 4-40 UNC

RS Stock No.: 446-5215Brand: TE ConnectivityManufacturers Part No.: 5747841-6
brand-logo
View all in D Sub Connectors

Technical Document

Specifications

Brand

TE Connectivity

Number Of Contacts

15

Gender

Male

Body Orientation

Right Angle

Mounting Type

Through Hole

Pitch

2.74mm

Mounting Hardware

4-40 UNC Female Screwlocks, Boardlocks

Termination Method

Solder

Housing Material

Thermoplastic

Length

39.14mm

Width

12.55mm

Depth

18.62mm

Dimensions

39.14 x 12.55 x 18.62mm

Contact Plating

Gold over Nickel

Contact Material

Brass

Series

AMPLIMITE HD-20
