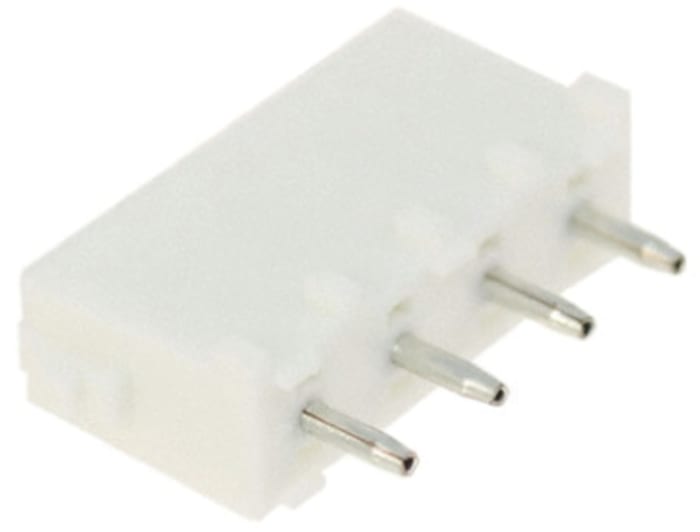

TE Connectivity Universal MATE-N-LOK Series Straight Through Hole PCB Header, 4 Contact(s), 6.35 mm Pitch, 1 Row,
Technical Document
Specifications
Brand
TE ConnectivitySeries
Universal MATE-N-LOK
Product Type
PCB Header
Pitch
6.35mm
Current
19A
Number of Contacts
4
Housing Material
Nylon
Number of Rows
1
Orientation
Straight
Shrouded/Unshrouded
Shrouded
Connector System
Wire-to-Board
Mount Type
Through Hole
Contact Material
Phosphor Bronze
Contact Plating
Tin
Row Pitch
6.35mm
Termination Type
Solder
Minimum Operating Temperature
-40°C
Contact Gender
Male
Tail Pin Length
3.18mm
Maximum Operating Temperature
105°C
Standards/Approvals
No
Product details
TE Connectivity Universal MATE-N-LOK / Universal MATE-N-LOK II Vertical PCB Mount Headers
A range of Universal MATE-N-LOK vertical PCB mount headers that can be used with both Universal MATE-N-LOK and Universal MATE-N-LOK II plug housings.
TE Connectivity Universal MATE-N-LOK II ™ Range
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 5.19
€ 1.037 Each (In a Pack of 5) (Exc. VAT)
Standard
5
€ 5.19
€ 1.037 Each (In a Pack of 5) (Exc. VAT)
Stock information temporarily unavailable.
Standard
5
| Quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 95 | € 1.037 | € 5.19 |
| 100 - 370 | € 0.79 | € 3.95 |
| 375 - 1495 | € 0.642 | € 3.21 |
| 1500 - 2995 | € 0.571 | € 2.85 |
| 3000+ | € 0.52 | € 2.60 |
