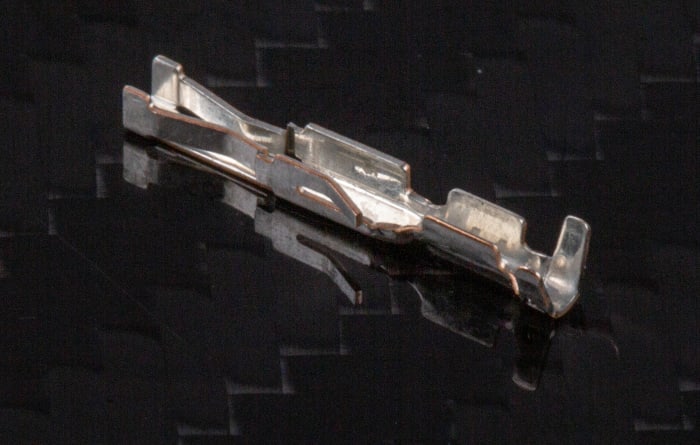

TE Connectivity AMPMODU HE14 Series Female Crimp Terminal, 28AWG Min, 24AWG Max
Technical Document
Specifications
Brand
TE ConnectivityGender
Female
For Use With
AMPMODU HE14 Connector Housing
Series
AMPMODU HE14
Minimum Wire Size mm²
0.08mm²
Minimum Wire Size (mm²)
0.08mm²
Termination Method
Crimp
Maximum Wire Size mm²
0.2mm²
Maximum Wire Size (mm²)
0.2mm²
Minimum Wire Size AWG
28AWG
Contact Plating
Tin
Minimum Wire Size (AWG)
28AWG
Maximum Wire Size AWG
24AWG
Contact Material
Phosphor Bronze
Maximum Wire Size (AWG)
24AWG
Maximum Contact Resistance
15mΩ
Minimum Operating Temperature
-65°C
Maximum Operating Temperature
+105°C
Product details
Crimp Terminals
Tin plated phosphor bronze, accepts 28 to 24awg (diameter over insulation 1.2mm)
Recommended wire strip length 3.25mm
TE Connectivity AMPMODU HE14 Interconnect System
The AMPMODU interconnect system is the signal standard for automation and control applications and is both reliable and economical. The AMPMODU HE14 interconnect system has a 2.54mm centreline and consists of IDC receptacle assemblies for terminating discrete wires or ribbon cable, shrouded headers, receptacle housings and crimp contacts. When combined, these connectors can be used in a wide variety of industrial applications and systems.
