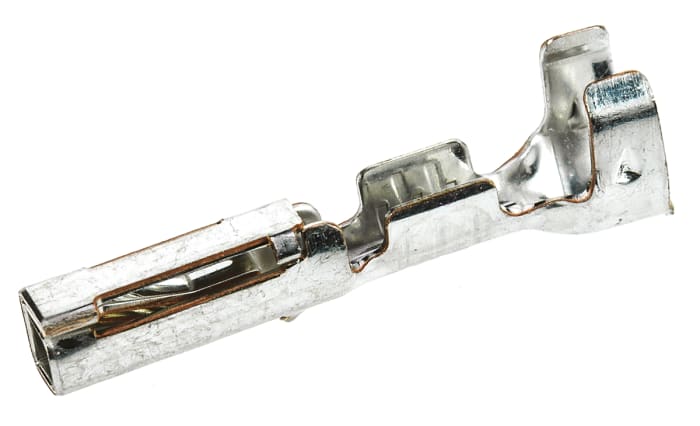

TE Connectivity MULTILOCK 040 Series Female Crimp Terminal, 22AWG Min, 20AWG Max
Technical Document
Specifications
Brand
TE ConnectivityGender
Female
For Use With
MULTILOCK 040 Connector Housing
Series
Multilock 040
Minimum Wire Size mm²
0.3mm²
Termination Method
Crimp
Maximum Wire Size mm²
0.6mm²
Minimum Wire Size AWG
22AWG
Contact Plating
Gold
Maximum Wire Size AWG
20AWG
Contact Material
Copper Alloy
Maximum Contact Resistance
20mΩ
Minimum Operating Temperature
-30°C
Maximum Operating Temperature
+105°C
Product details
MULTILOCK 040 & 070 Contacts & Tooling
These connectors manufactured from TE Connectivity offers a solid mechanical connection which is ideal for any cable connection. They are mostly used in automation industry. Our range offers both female and male socket type connection. You can choose from tin or gold contact plating.
Features of 040 Series:
• Current rating – 8A
• Withstand voltage: 1kVac per 1 minute
• Low level resistance: 10 mΩ max (initial)
• Overall resistance: 20 mΩ max (final)
• Operating temperature: -30 – 105 °C
• Crimp terminating contacts
• Snap-in fixing connector cavities
Features of 070 Series:
• Current rating: 15A
• Withstand voltage: 1kVac per 1 minute
• Low level resistance: 1 mΩ max (initial)
• Overall resistance: 10 mΩ max (final)
• Operating temperature: -30 to +105 °C
• Crimp terminating contacts
• Snap-in fixing connector cavities
