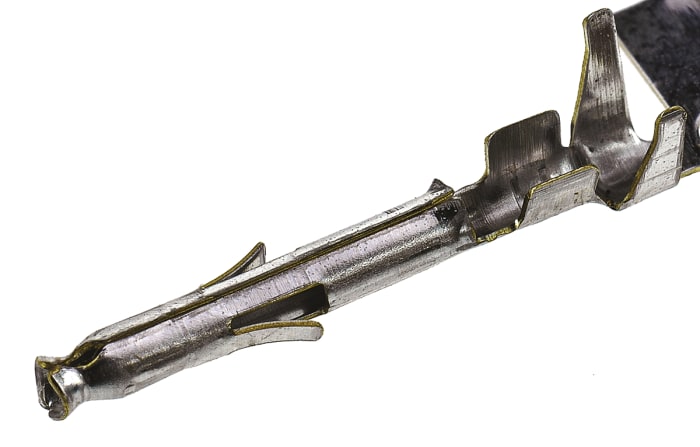

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal, 22 AWG Min Crimp, 18 AWG Max
Technical Document
Specifications
Brand
TE ConnectivityProduct Type
Crimp Terminal
Gender
Female
For Use With
Mini-Universal MATE-N-LOK Connector Housing
Current
11.2A
Series
Mini-Universal MATE-N-LOK
Minimum Wire Size AWG
22 AWG
Contact Plating
Gold
Maximum Wire Size AWG
18 AWG
Contact Material
Phosphor Bronze
Maximum Contact Resistance
20mΩ
Minimum Operating Temperature
-55°C
Termination Type
Crimp
Maximum Operating Temperature
125°C
Standards/Approvals
No
Product details
TE Connectivity Mini Universal MATE-N-LOK Contacts & Crimp Tooling
A range of various TE Connectivity Mini Universal MATE-N-LOK Contacts & Crimp Tooling.
TE Connectivity Mini-Universal MATE-N-LOK Connector System
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 4.89
€ 0.489 Each (In a Pack of 10) (Exc. VAT)
Standard
10
€ 4.89
€ 0.489 Each (In a Pack of 10) (Exc. VAT)
